CD20

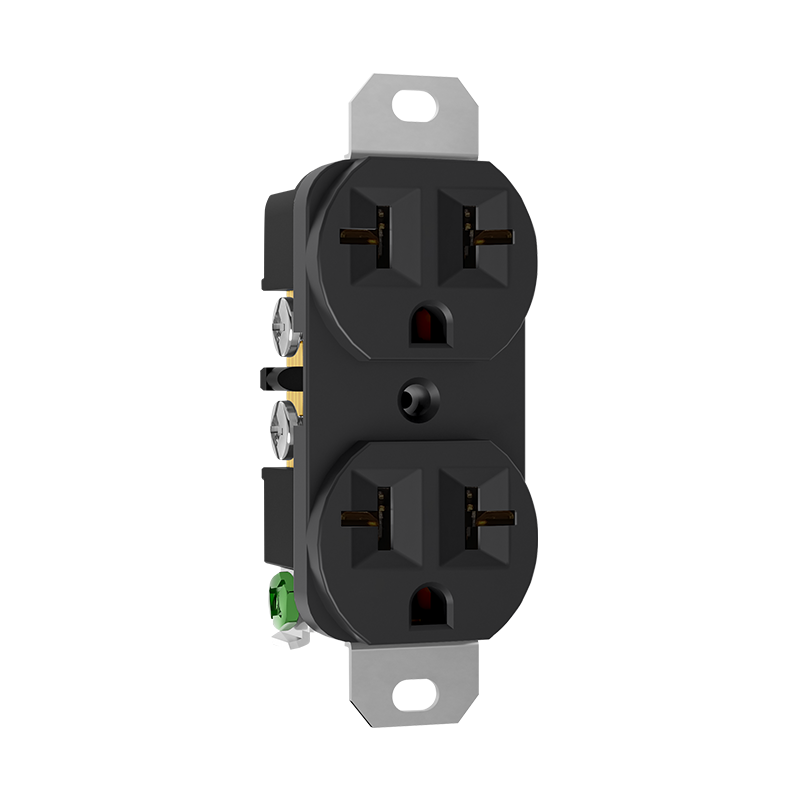

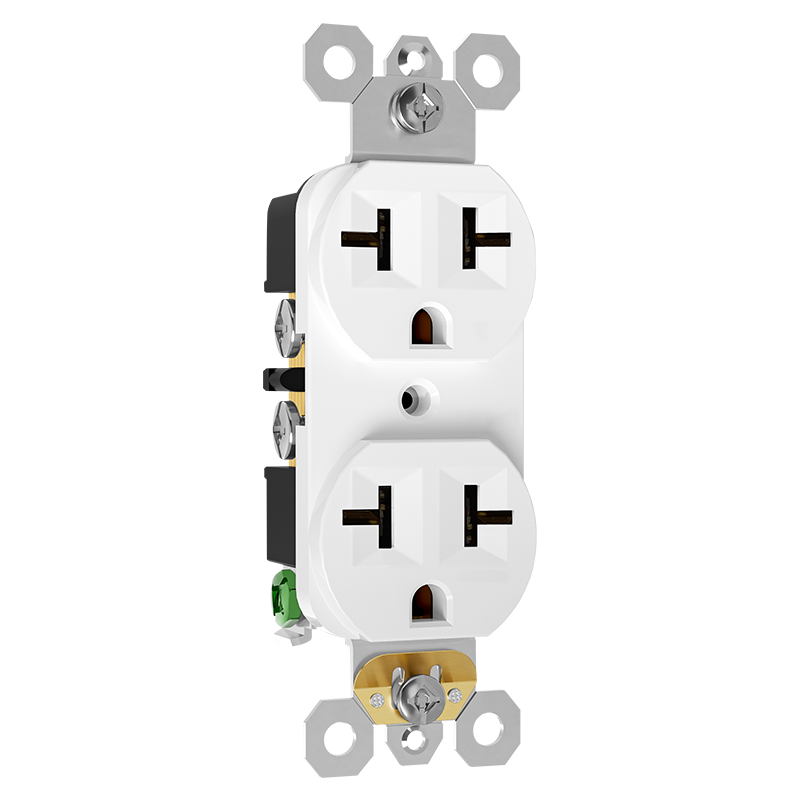

NEMA 5-20R Duplex Receptacle Outlet, 20A 125V Heavy Duty Wall Outlet with Grounding, Residential Commercial Electrical Outlet
Language
<
Return to main menu
Color:
-

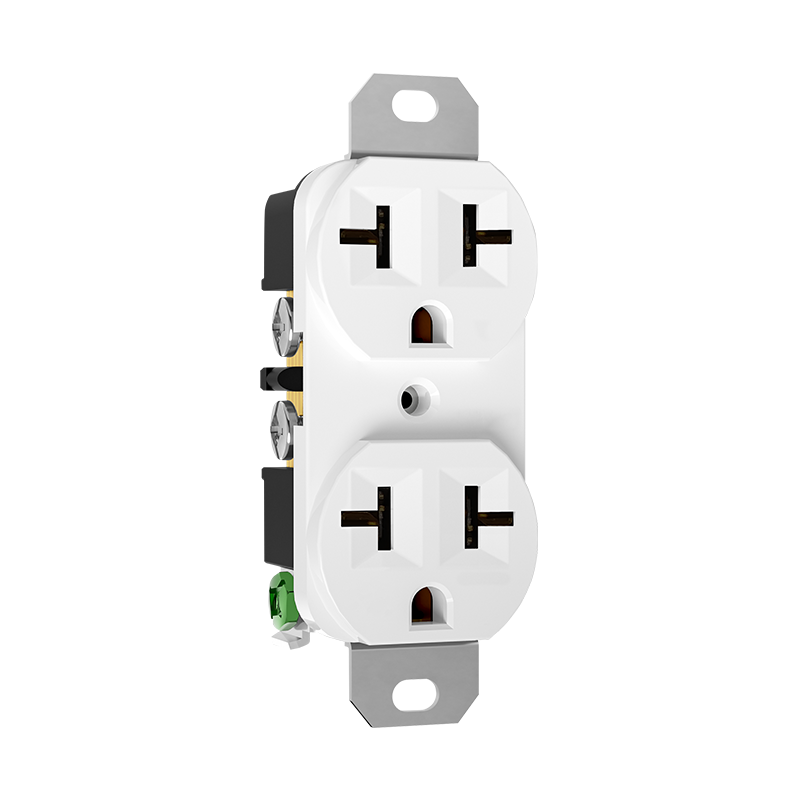

White-WH
-
Black-BK
-

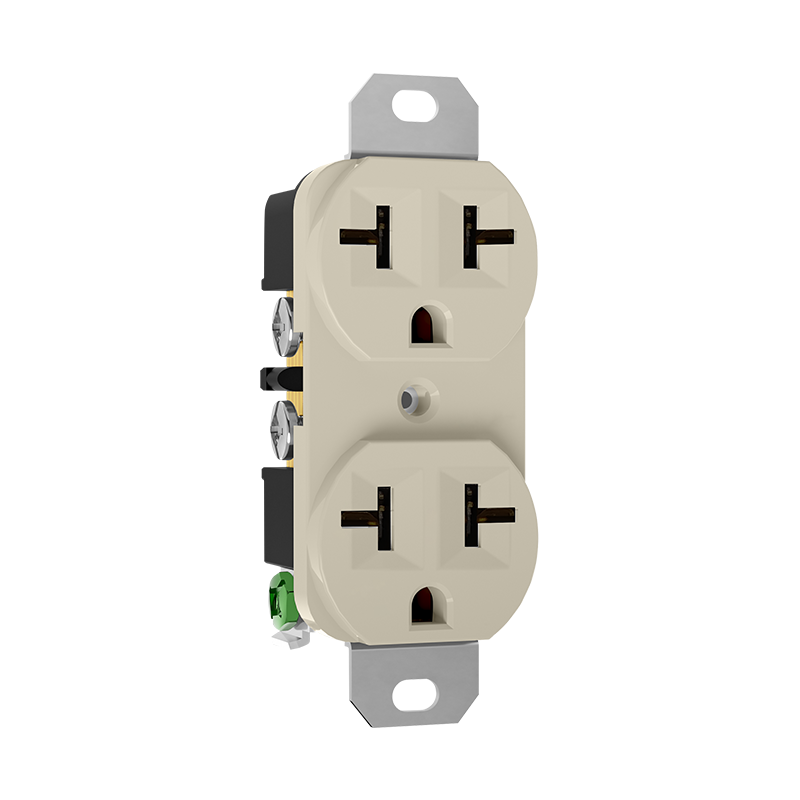

Ivory-IV
-
Almond-AL
-
Grey-GR
-

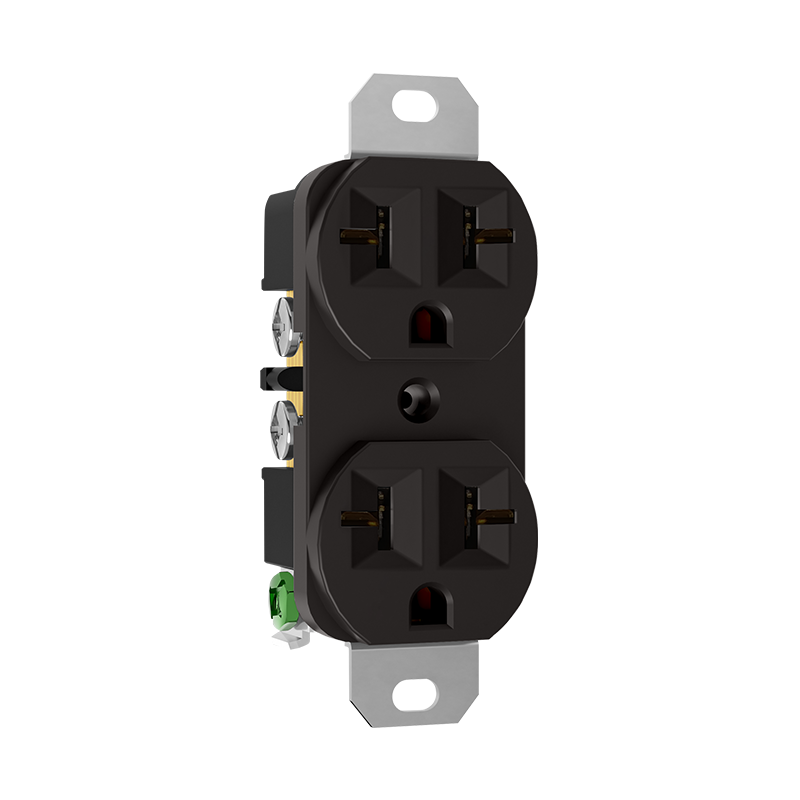

Brown-BR
-
Graphite-GP
Quantity:
Features & Benefits
Wide Compatibility: NEMA 5-20R duplex receptacle fits 15A/20A 125V NEMA 5-15P/5-20P plugs, ideal for home and commercial use.
Durable Construction: High-conductivity pure copper contacts ensure stable power transmission, long service life, and anti-oxidation performance.

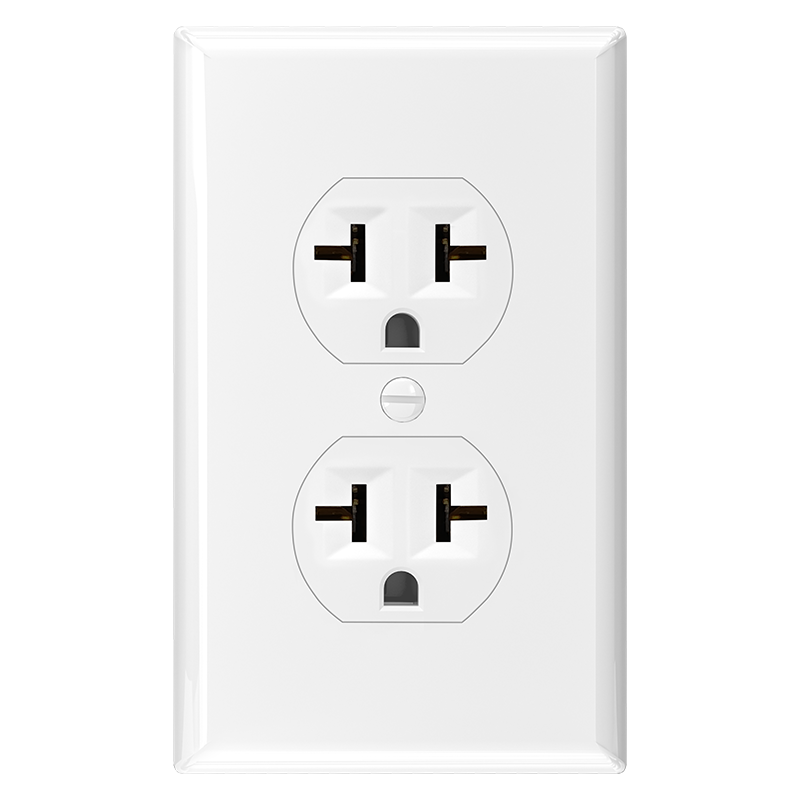

Easy Installation: Standard wall plate fit with side screw terminals and mounting brackets, perfect for DIY or professional electrician installation.
Versatile Use: Suitable for kitchens, living rooms, garages, offices, and all residential/commercial spaces.
Specifications
| Model | CD20 |
| Grade | Residential & Commercial |
| Feature | Duplex Outlet |
| Standard Version | UL498 16th Edition/CSA C22.2 NO. 42-10 |

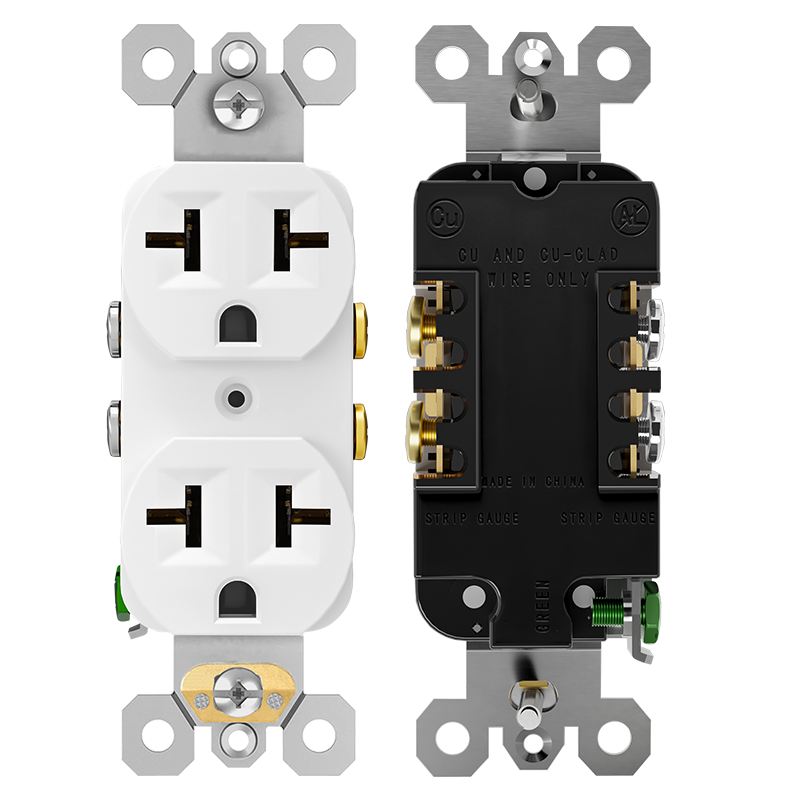

| Wiring | Back Wire & Side Wire |
| Rating | 20A 125V/250V AC |
| NEMA | 5-20R |
| Pole & Wire | 2-Pole, 3 Wire |
| Spec | Non Tamper-Resistant |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Dielectric Voltage Withstand | 2000VAC |
Material Characteristics
Front Cover/Body: High-Impact PC-Thermoplastic
Operation Temperature: -35 ℃~ 70 ℃
Environmental : Flammability UL-94 V2 Rating
Yoke: Zinc-Plated Steel 1.2mm Thick
Clamps: Phosphor Bronze 0.8mm Thick
Terminal Screws: Plated Steel
Warranty: 3 Years Limited

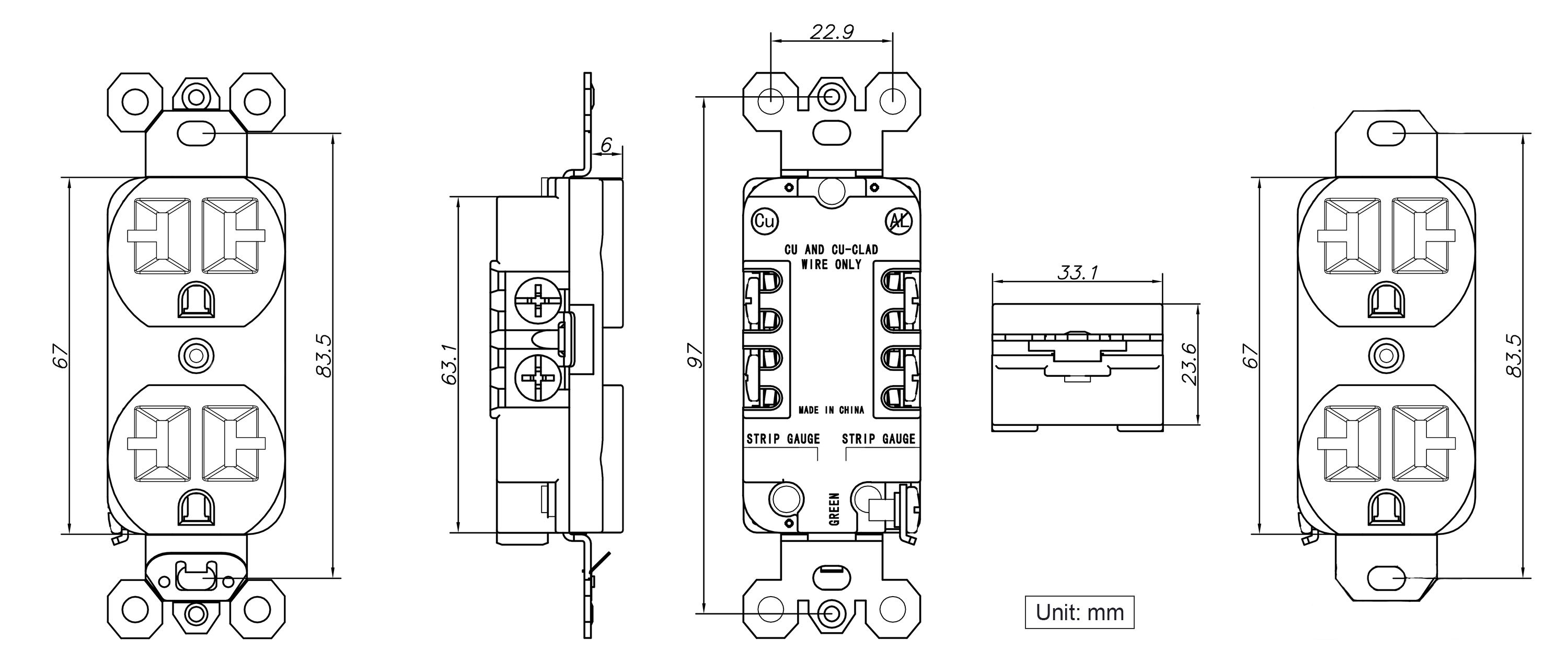

Diemension
