CR20

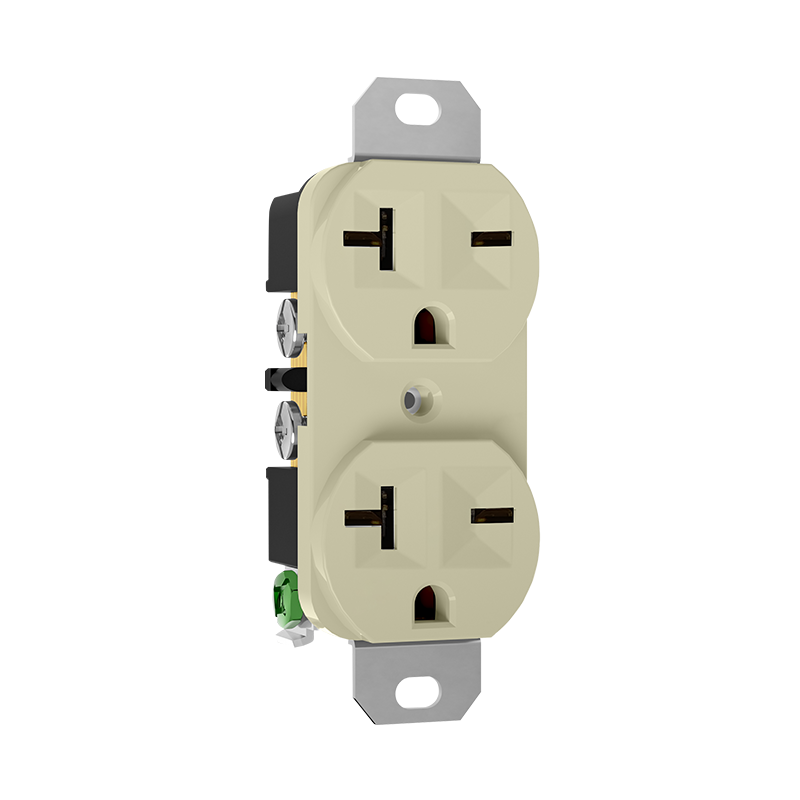

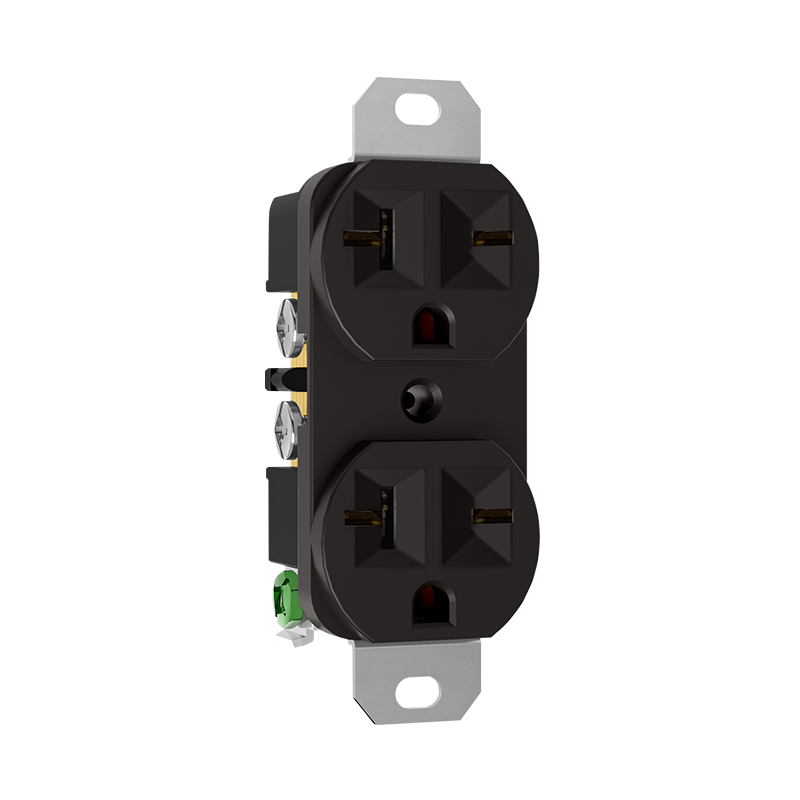

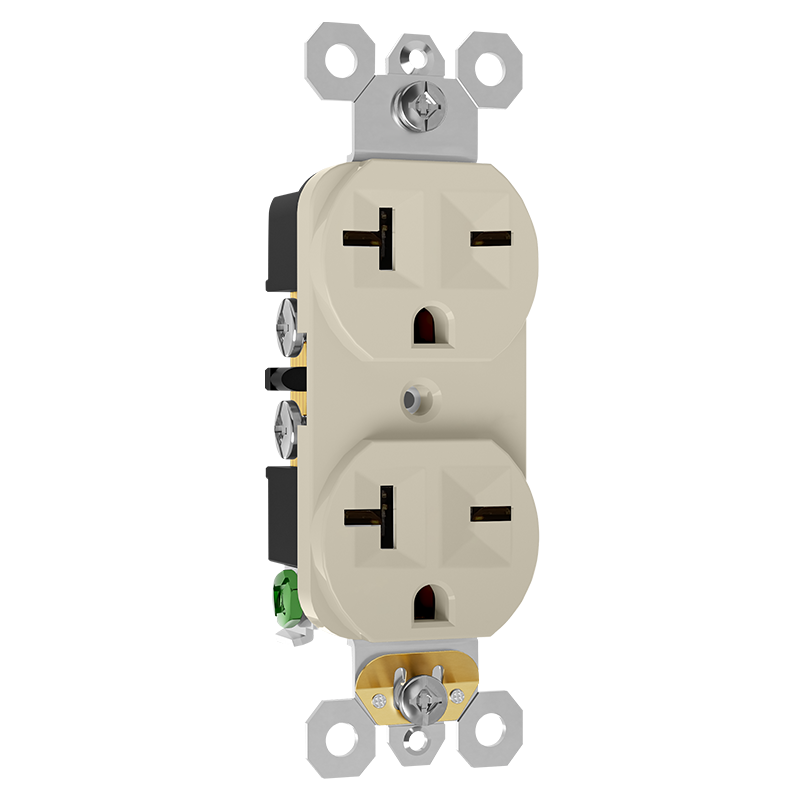

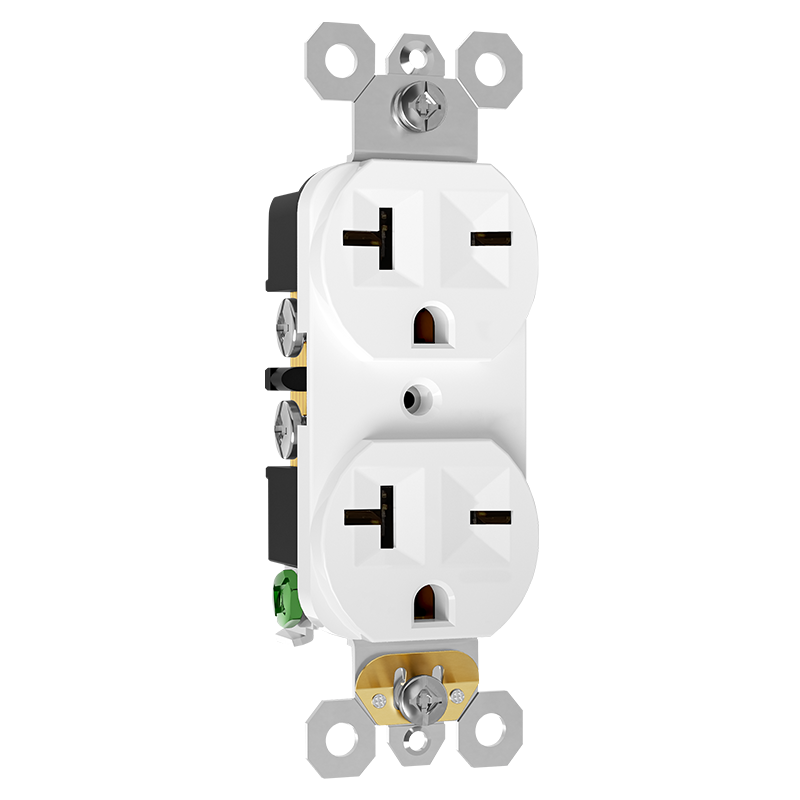

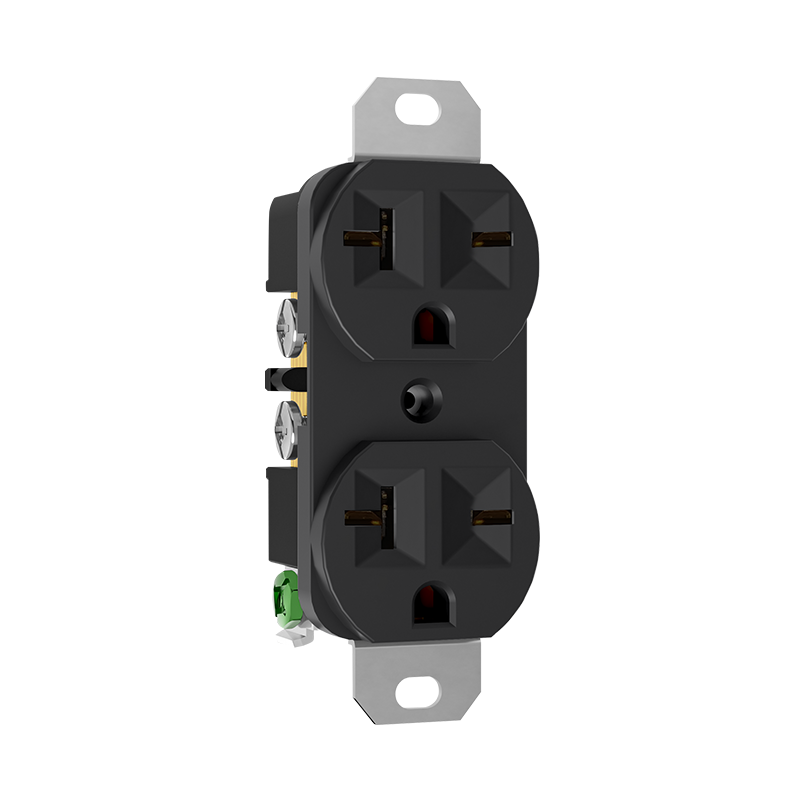

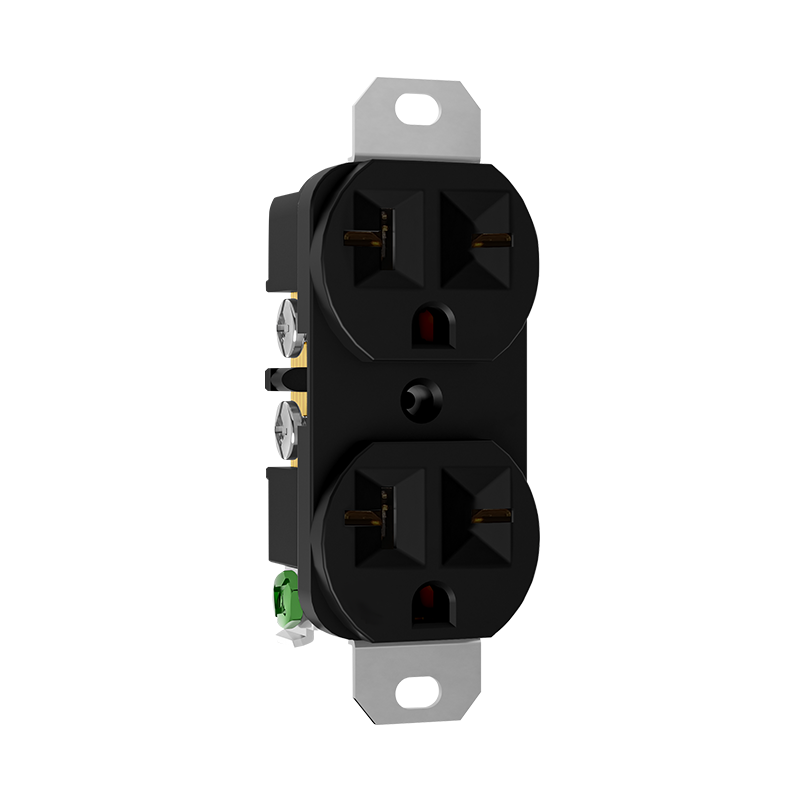

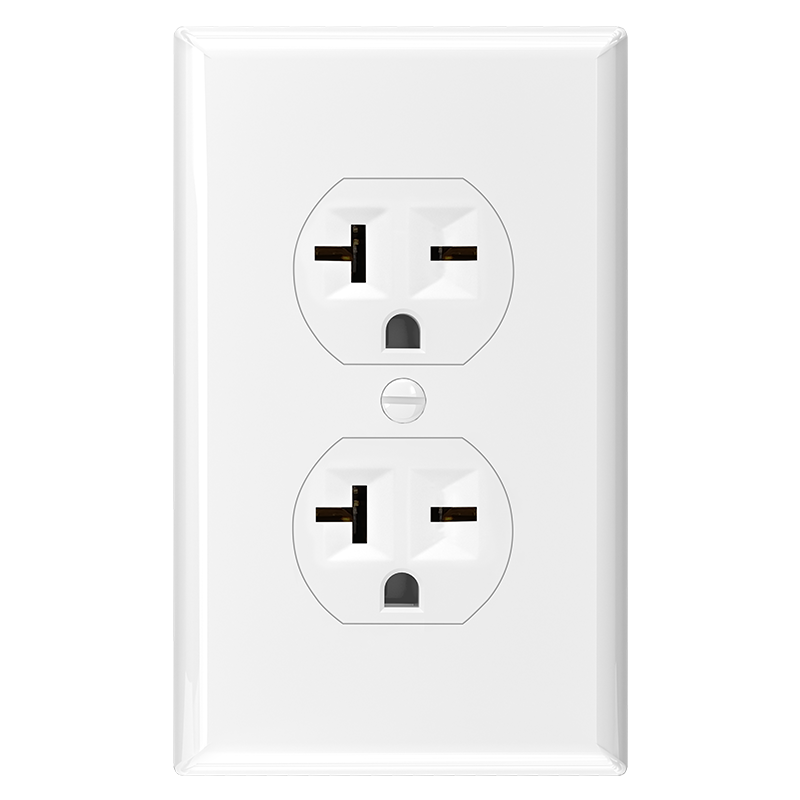

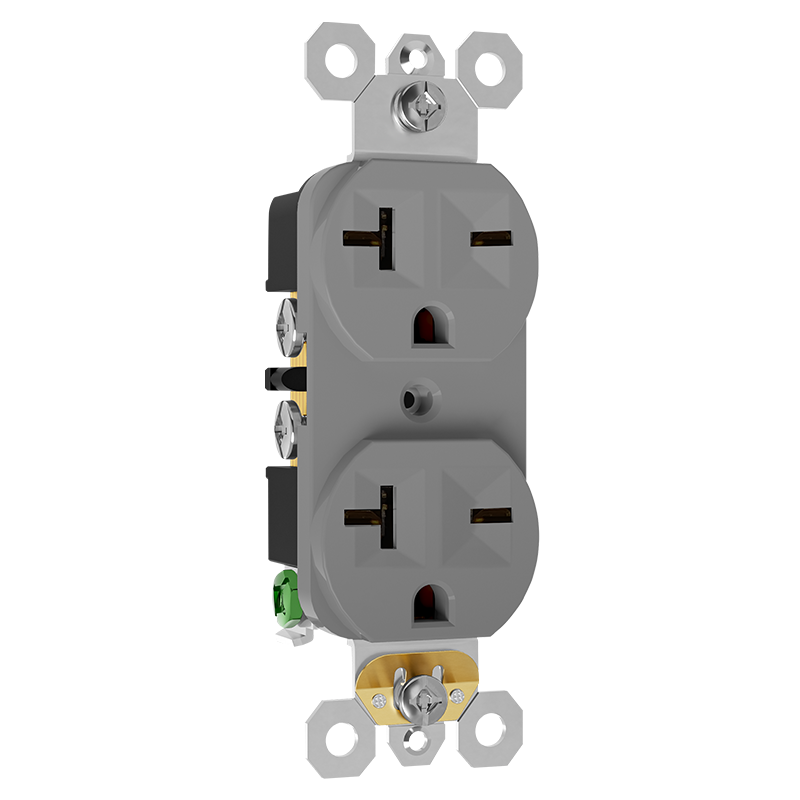

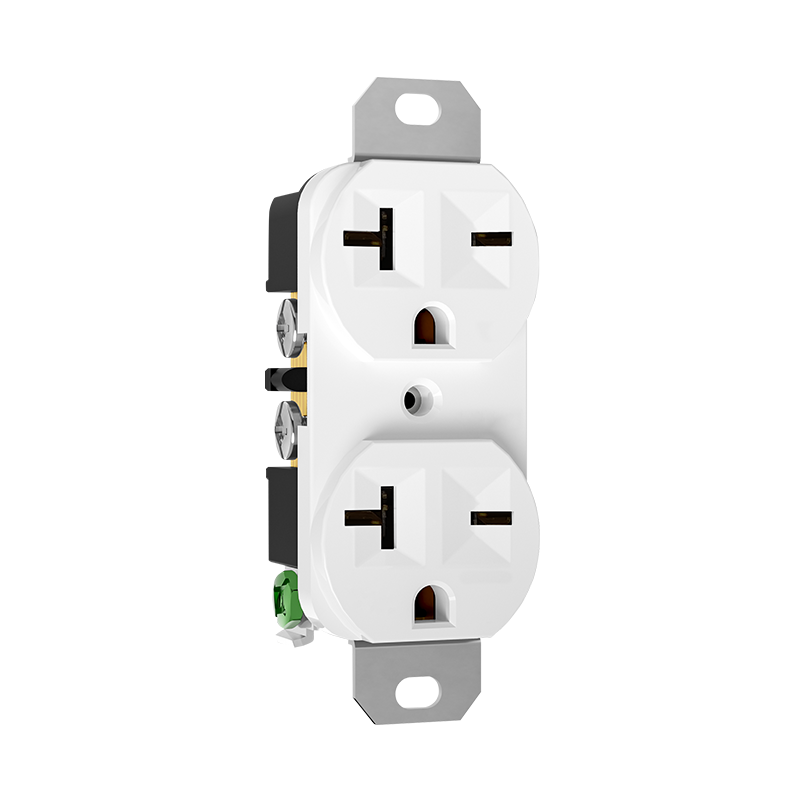

20A 250V Duplex Receptacle, NEMA 6-20R Grounded Wall Socket, for Residential & Commercial Use
Language
<
Return to main menu
Color:
-
White-WH
-
Black-BK
-
Ivory-IV
-
Almond-AL
-
Grey-GR
-
Brown-BR
-
Graphite-GP
Quantity:
Features & Benefits
Standard North American Design: 20A 250V duplex receptacle fits NEMA 6-15 plugs, ideal for household and office use.
Dual Outlet Configuration: Two grounded sockets on one unit, power multiple devices simultaneously.

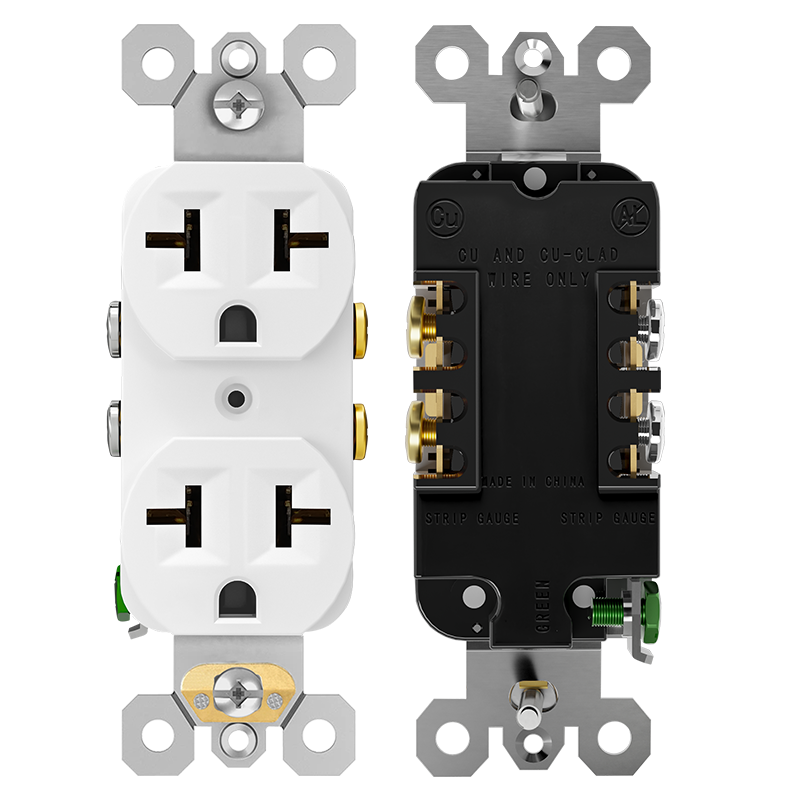

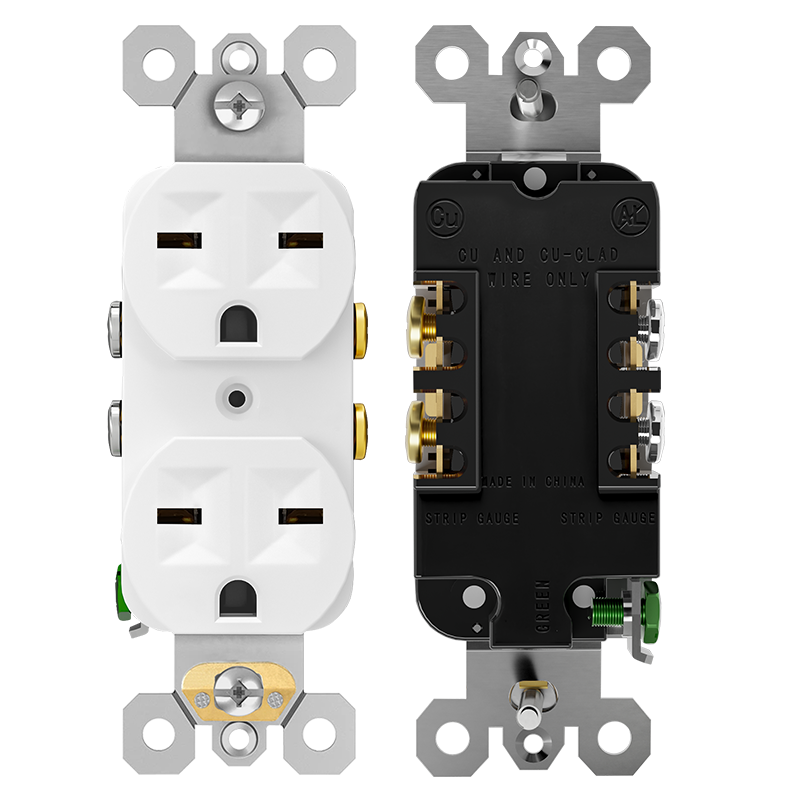

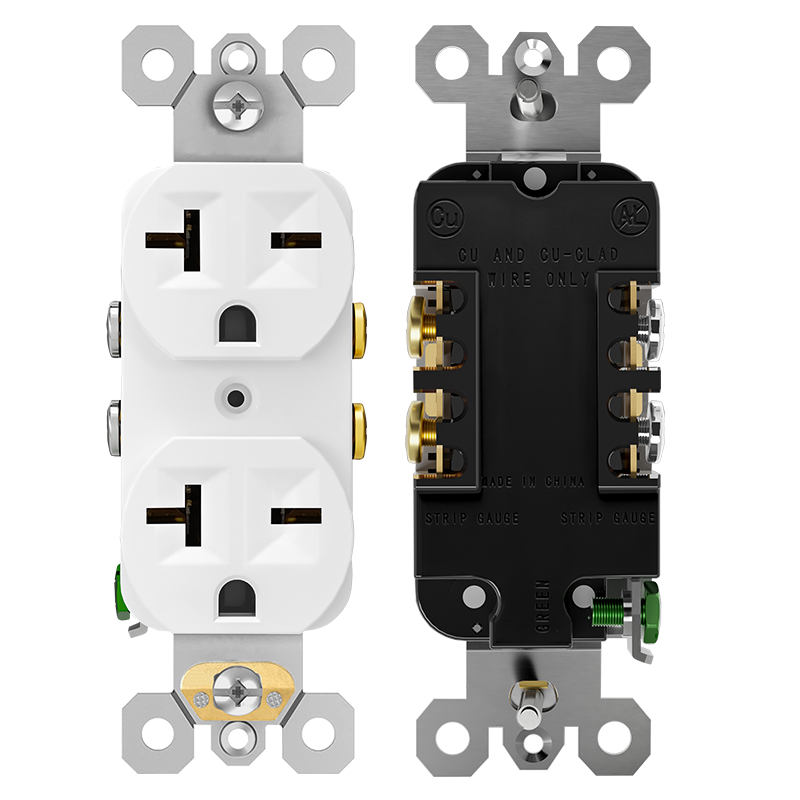

Easy Installation: Back Wire & Side Wire compatible terminals with color-coded screws for quick, secure wiring.
Durable & Safe Construction: High-impact, fire-resistant thermoplastic housing for long-lasting performance.
Universal Compatibility: Fits standard 1-gang wall boxes, perfect for home renovations, new builds, and replacements.
Specifications
| Model | CR20 |
| Grade | Residential & Commercial |
| Feature | Duplex Outlet |
| Standard Version | UL498 16th Edition/CSA C22.2 NO. 42-10 |
| Wiring | Back Wire & Side Wire |
| Rating | 20A 250V AC |
| NEMA | 6-20R |
| Pole & Wire | 2-Pole, 3 Wire |
| Spec | Non Tamper-Resistant |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Dielectric Voltage Withstand | 1250V |
Material Characteristics
Front Cover/Body: High-Impact PC-Thermoplastic
Operation Temperature: -35 ℃~ 70 ℃
Environmental : Flammability UL-94 V2 Rating
Yoke: Zinc-Plated Steel 1.2mm Thick
Clamps: Phosphor Bronze 0.8mm Thick
Terminal Screws: Plated Steel
Warranty: 3 Years Limited

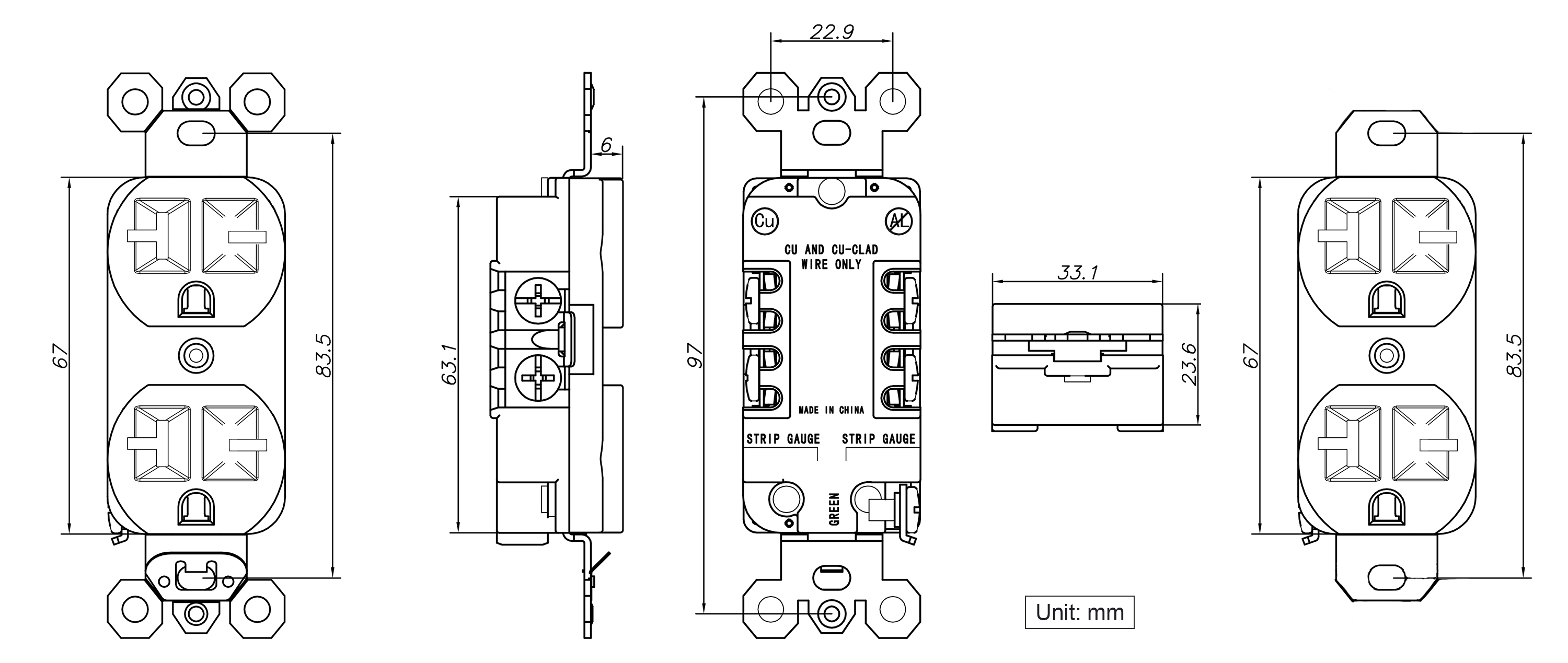

Diemension
