T15

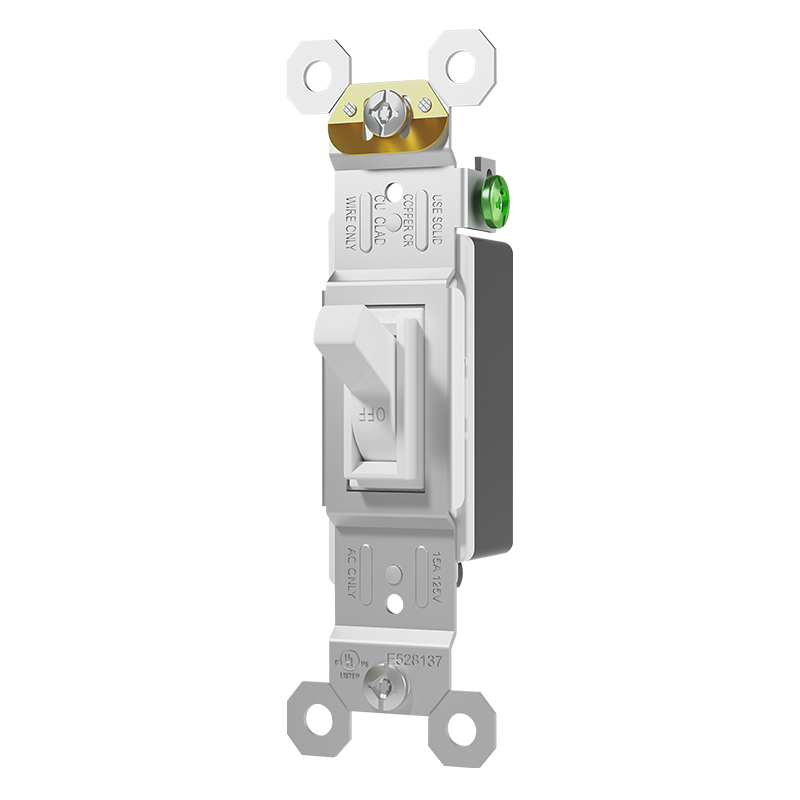

15A 125V Single Pole Light Switch, UL Listed, Residential Grade Toggle Switch for Wall Lighting Control
Language
<
Return to main menu
Color:
-
White-WH
-
Black-BK
-
Ivory-IV
-
Almond-AL
-
Grey-GR
-
Brown-BR
-
Graphite-GP
Quantity:
Features & Benefits
15A 125V Rated for Standard Circuits: Designed for 15-amp, 125-volt AC residential and commercial lighting circuits, compatible with most household wiring setups.
UL-Listed for Safety Compliance: Certified to UL safety standards (E528137), ensuring reliable performance and adherence to North American electrical codes.

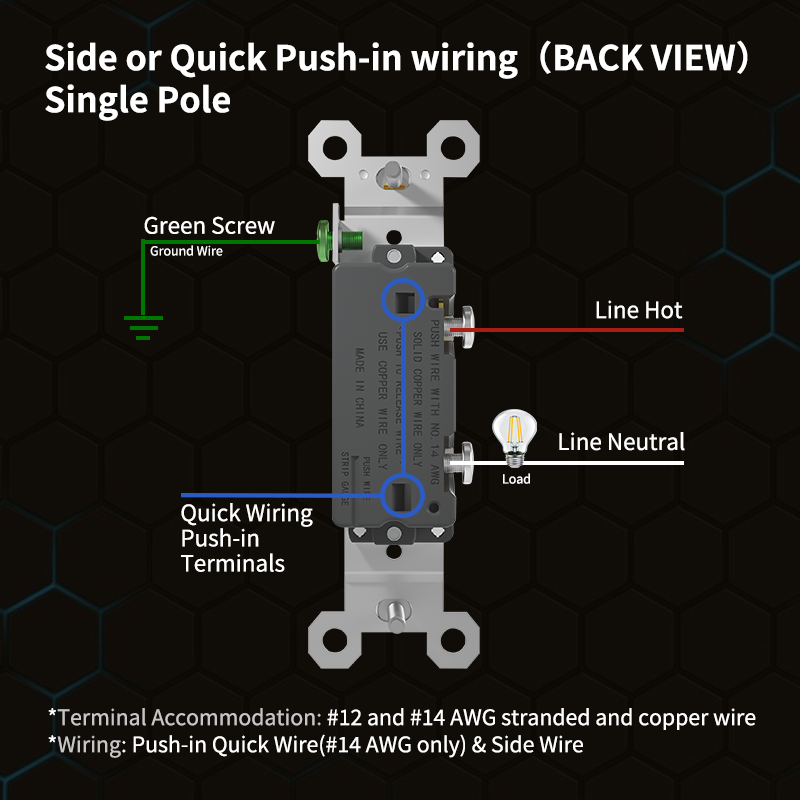

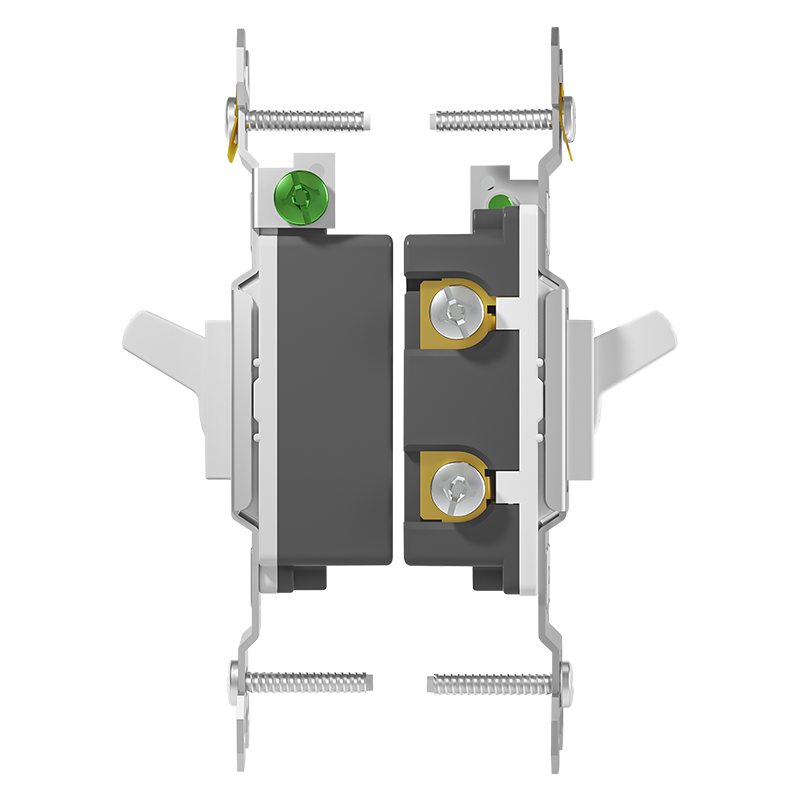

Dual Wiring Options: Features both screw terminals and push-in backstabs for flexible, easy installation with solid copper or copper-clad wire.
Single-Pole Toggle Design: Classic single-pole construction for one-location control of lights, fans, and other 120V AC loads.
Durable, Long-Lasting Build: Sturdy metal mounting yoke and impact-resistant plastic housing for secure wall box installation and extended service life.
Specifications
| Model | T15 |
| Certification | UL/CUL |
| File No. | E528137 |
| Grade | Residential & Commercial |
| Feature | Toggle Switch |
| Terminal Accommodation | #12 and #14 AWG stranded and copper wire |
| Wiring | Push-in Quick Wire(#14 AWG only) & Side Wire |
| Rating | 15A 125V AC 60Hz |
| Mounting Type | Wall Mount |
| Pole & Wire | Single Pole, 3 Wire |
| Terminal Identification | Terminal identification in accordance with UL20 |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Flammability | UL20 Minimum Rating |
Material Characteristics
Front Cover/Body: High-Impact PC-Thermoplastic
Operation Temperature: -35 ℃~ 70 ℃
Environmental : Flammability UL-94 V2 Rating
Yoke: Zinc-Plated Steel 1.2mm Thick
Clamps: Phosphor Bronze 0.8mm Thick
Terminal Screws: Plated Steel
Warranty: 3 Years Limited

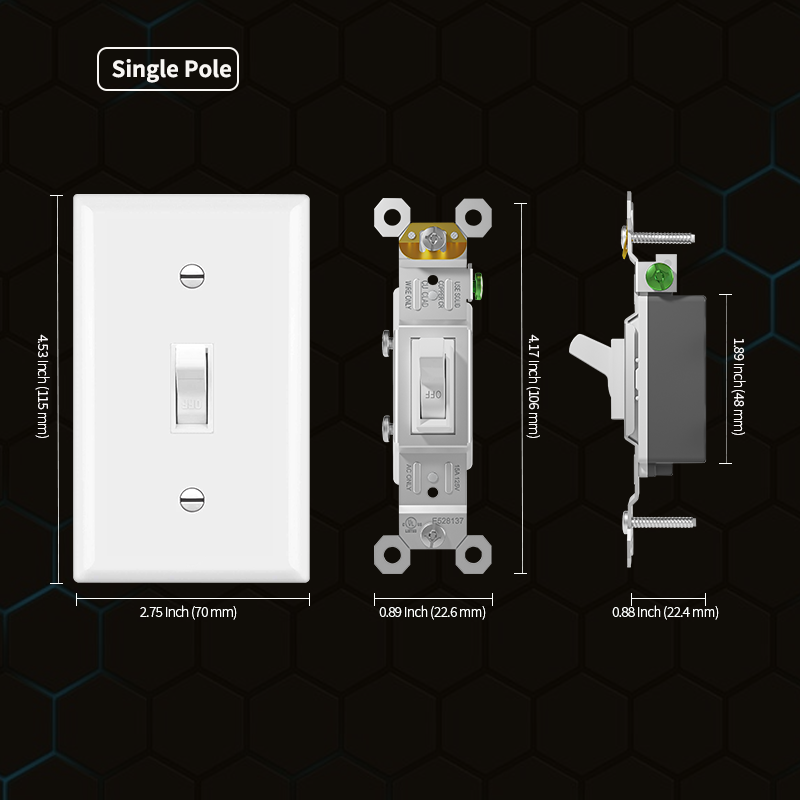

Diemension
