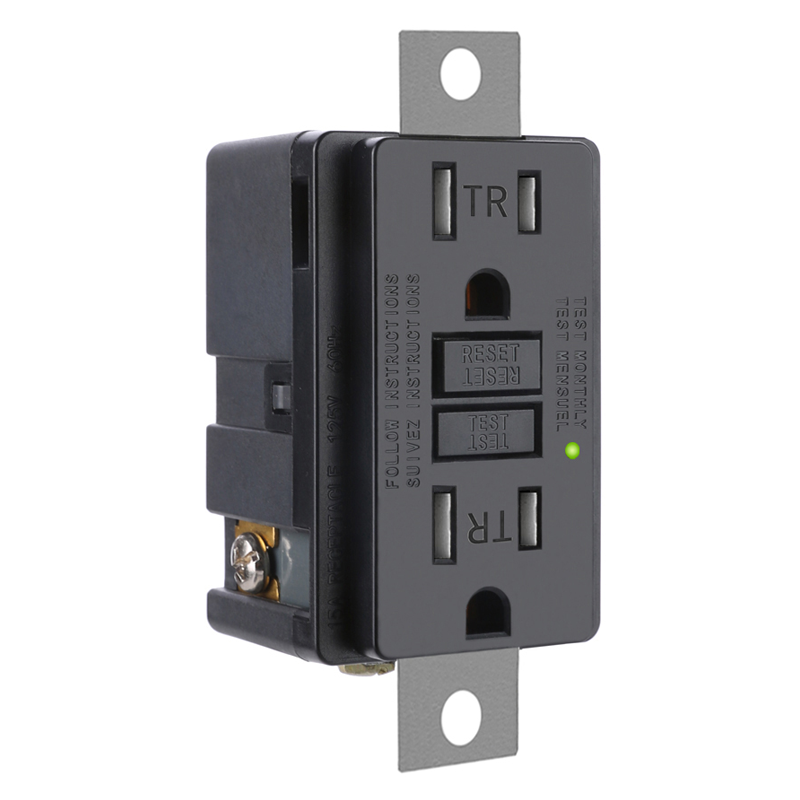

GTN15
15 Amp, 125 Volt Industrial Grade GFCI Outlet, 20 Amp Feed-Through,Tamper-Resistant, Self-test GFCI, back and side wired, 2-pole,3-wire, NEMA 5-15R, Nylon material made.
15 Amp, 125 Volt Industrial Grade GFCI Outlet, 20 Amp Feed-Through,Tamper-Resistant, Self-test GFCI, back and side wired, 2-pole,3-wire, NEMA 5-15R, Nylon material made.
Industrial Grade GFCI Outlet
UL/Cul listed E504391.
Patent protected US/CN.
PCB designed for Anti vibration;
Nylon material made front cover and base as long as the buttons.
Design for industrial application such a generator, outdoor light;
Special design on PCB board ensure the GFCI Anti high-frequency
electromagnetic interference;
No Feed-through terminals;
Class A GFCI Trip threshold meets or exceeds UL requirements for
tripping time UL 943 5th Edition 2018.
Mechanical structure ensures that the GFCI can be tripped powered
off in any state.
No power will be delivered to receptacle face if improperly wired
(line-load reversed) and the GFCI can Reset for safety.
Status Indicator Light provides simple, intuitive feedback on power
and protection status.
Impact-Resistant thermoplastic cover and body.
Thickened silver contacts reducing temperature rise.
Anti-Gasoline & Anti-Vibrate.
Nylon material made front cover and base as long as the buttons.
Model | GTN15 |
Certification | UL/CUL |
Standard | UL943/UL498/UL1998 |
Amperage | 15A |
Rating Voltage | 125V AC |
Working Voltage | 102V~132V |
Trip Level | 4mA~6mA <25ms |
Operating Temp | -35℃ to 66℃ (-30℉ to 150℉) |
Wiring Method | Side Wire & Back Wire |
Wire Gauge | #12~#14 AWG Copper Wire |
Grade | Industrial Grade |
NEMA | 5-15R |
Pole & Wire | 2-Pole, 3-Wire |
Grounding | Self-Grounding |
Tamer-Resistant | Yes |
Weather-Resistant | Non |
Usage | Outdoor/Indoor Use |
Material: Face, Nylon material; Body, Nylon material;
0.8mm thick high-precision phosphorus bronze;
1.2mm thick galvanized steel bracket;
Silver alloy contacts with 30 silver layer thick;
Coated PC board with Smart chip MCU to protect critical components from moisture;
Environmental: Flammability UL-94 V1 Rating.
