DS1503
3 Single Pole Decorator Rocker Light Switch, 15A 120/277V, Spec Grade, ETL Listed, Glossy, for Home & Commercial Use
Language
<
Return to main menu
Color:
-
White-WH
-

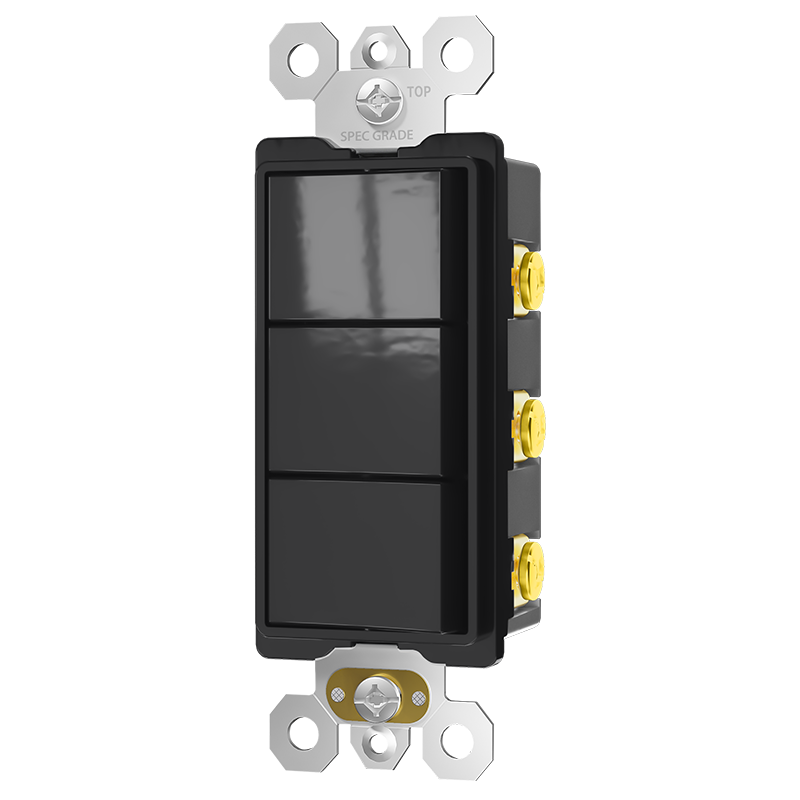

Black-BK
-
Ivory-IV
-

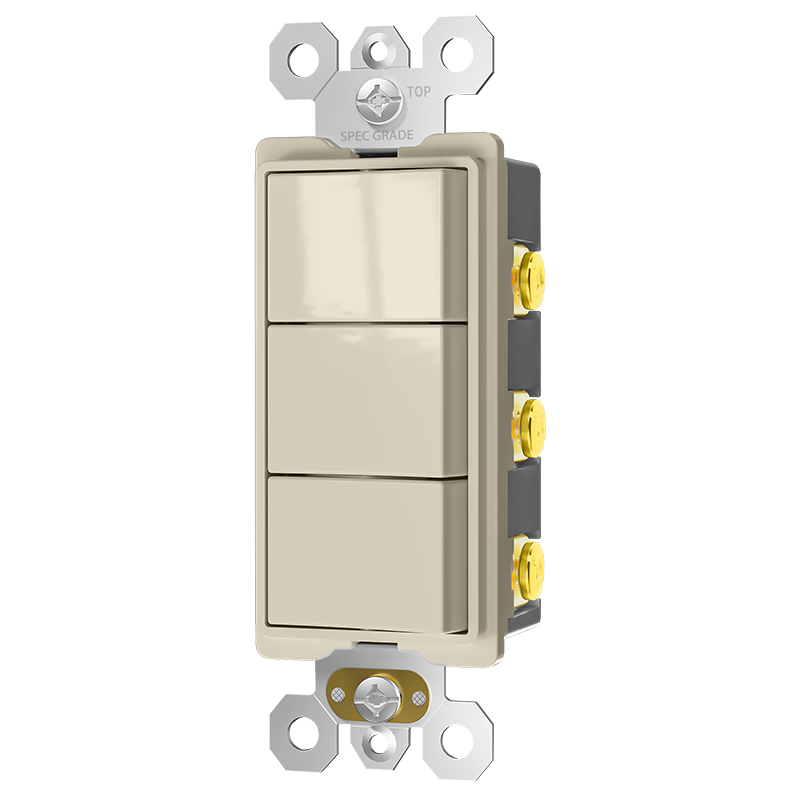

Almond-AL
-

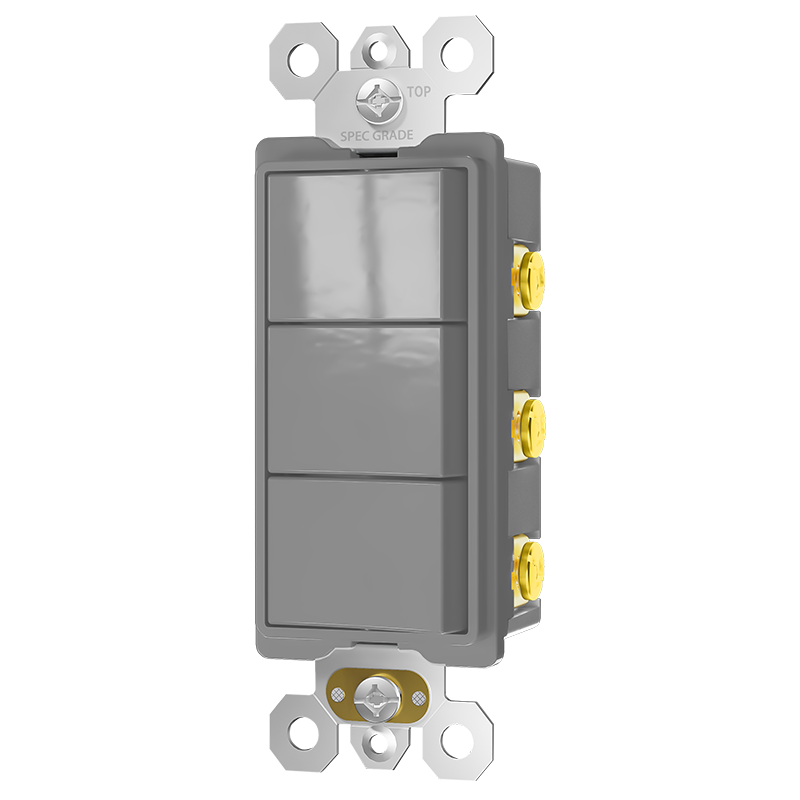

Grey-GR
-

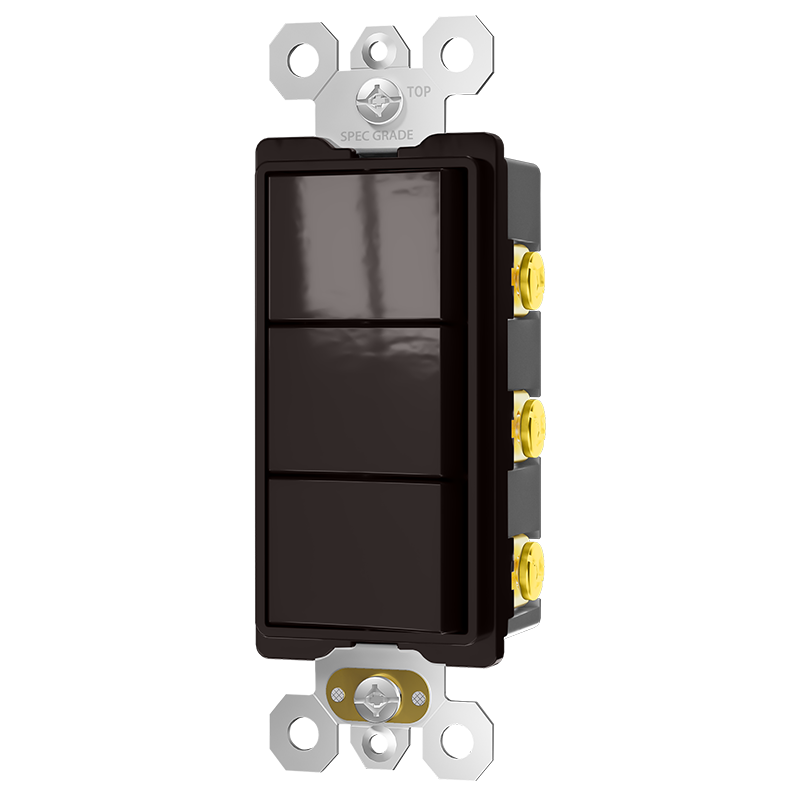

Brown-BR
-
Graphite-GP
Quantity:
Features & Benefits
3 Independent Rocker SwitchesControl 3 separate lighting/appliance loads from one wall plate, saving space and streamlining your home or office. Rated 15A 120/277V, compatible with most North American electrical systems.
ETL Listed for Maximum SafetyFully ETL certified and NEC compliant, with a dedicated green grounding screw to prevent electrical shock, ensuring safe, stable power for all residential and commercial installations.
Spec Grade Heavy-Duty BuildCommercial-grade construction with 10,000+ on/off cycle lifespan, corrosion-resistant brass terminals, and fire-retardant housing for long-lasting, reliable performance.

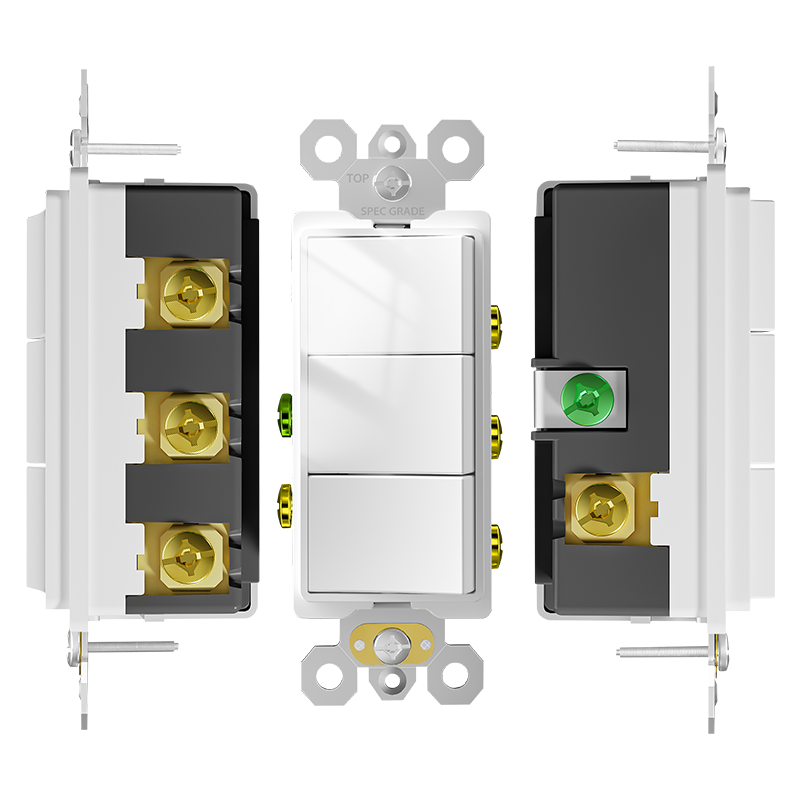

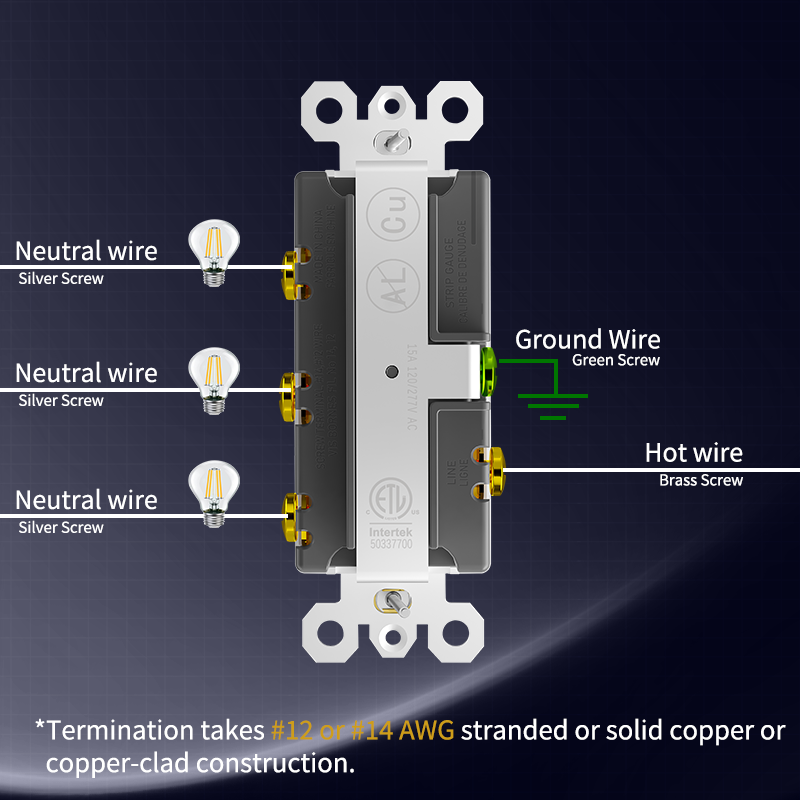

Easy, Universal InstallationFits standard North American wall boxes, with clearly labeled side-wired screw terminals for quick, error-free wiring, perfect for electricians and DIYers alike.

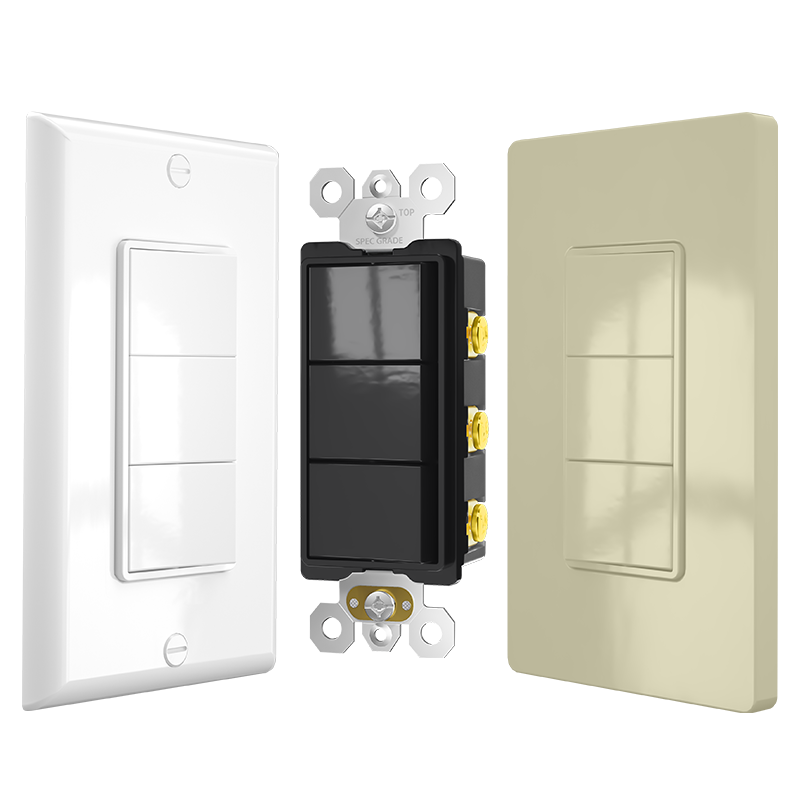

Sleek Glossy FinishModern glossy design complements any decor, with a smooth, easy-to-clean surface that resists fingerprints, keeping your switch looking pristine for years.
Specifications
| Model | DS1503 |

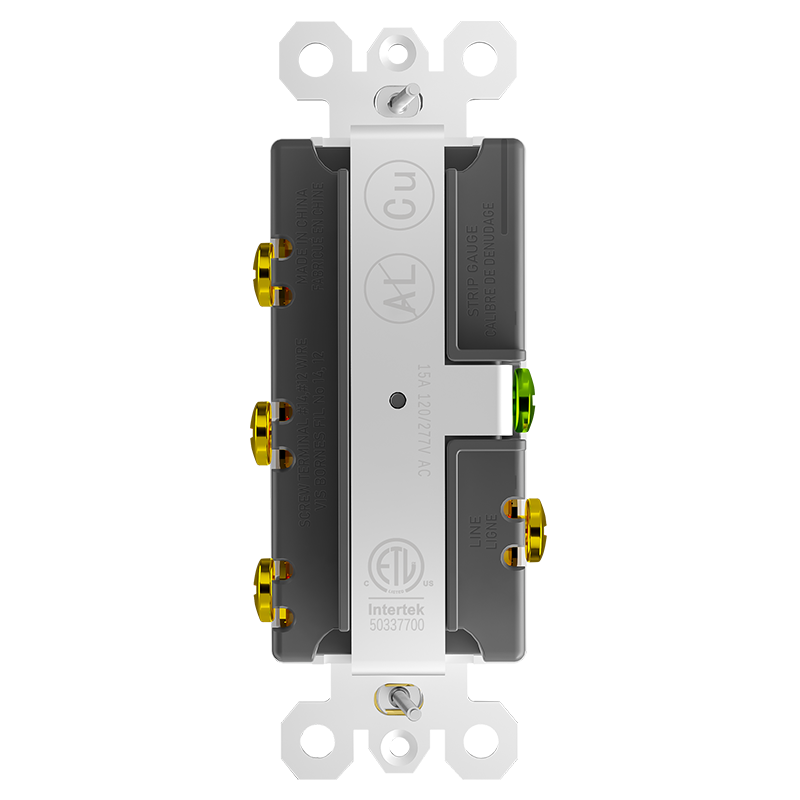

| Certification | ETL |
| File No. | E5033770 |
| Grade | Residential & Commercial |
| Feature | Rocker Switch |
| Terminal Accommodation | #12 and #14 AWG stranded and copper wire |
| Wiring | Back Wire & Side Wire |
| Rating | 15A 120/277V AC |
| Mounting Type | Wall Mount |
| Pole & Wire | 3 Single Pole, 3 Wire |
| Grounding | Self-Grounding with Extend Cooper Clip |
Material Characteristics
Front Cover/Body: High-Impact PC-Thermoplastic
Operation Temperature: -35 ℃~ 70 ℃
Environmental : Flammability UL-94 V2 Rating
Yoke: Zinc-Plated Steel 1.2mm Thick
Clamps: Phosphor Bronze 0.8mm Thick
Terminal Screws: Plated Steel
Warranty: 3 Years Limited

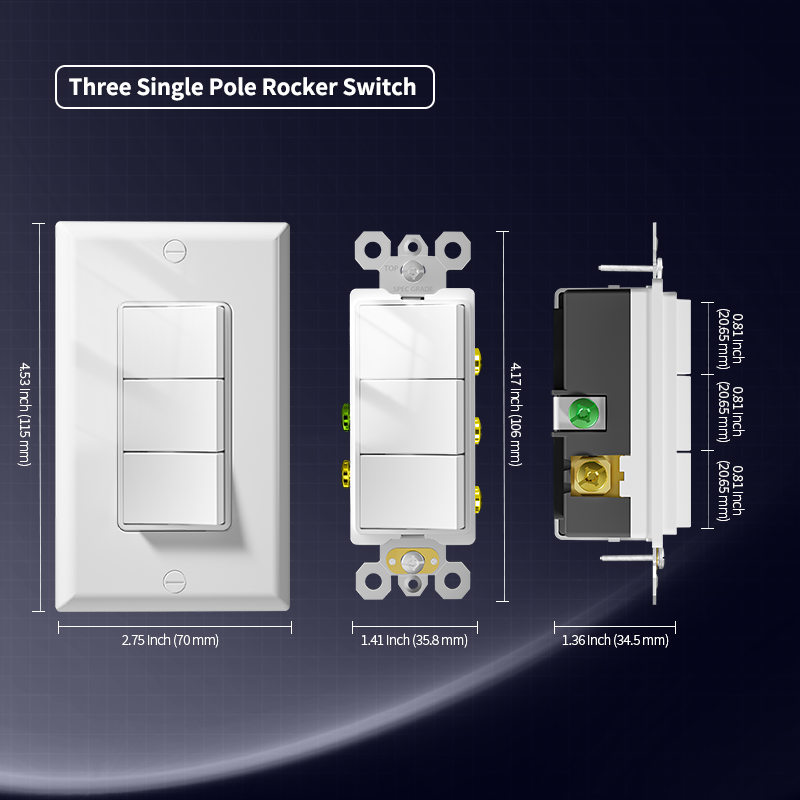

Diemension
