DS1502

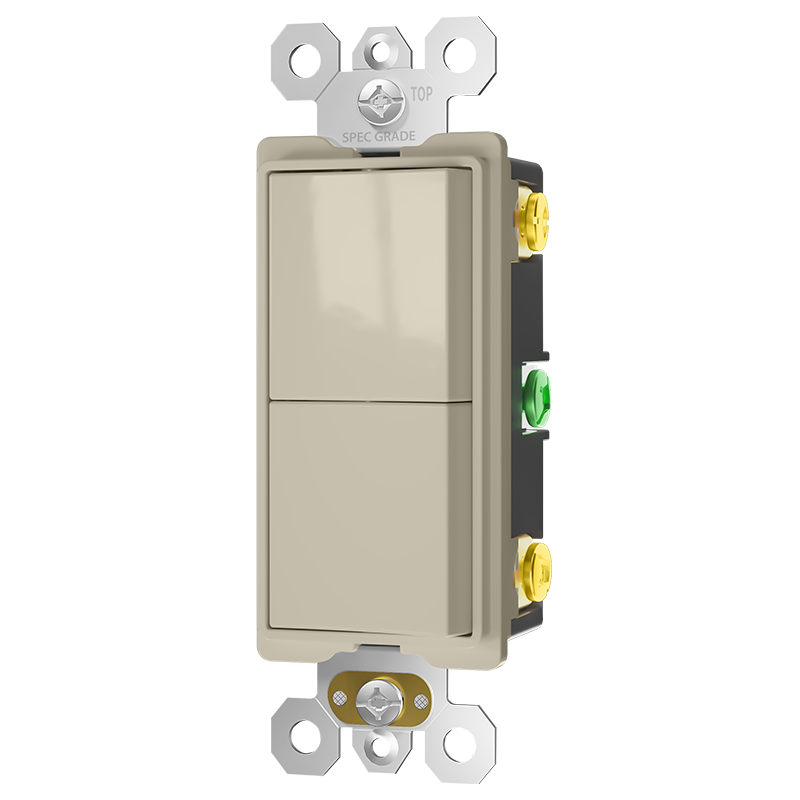

Double Rocker Light Switch, 15 Amp 120/277V Decora Switch, SPEC GRADE, Single Pole Dual Rocker Wall Switch, Break-Off Tab, ETL Listed
Language
<
Return to main menu
Color:
-

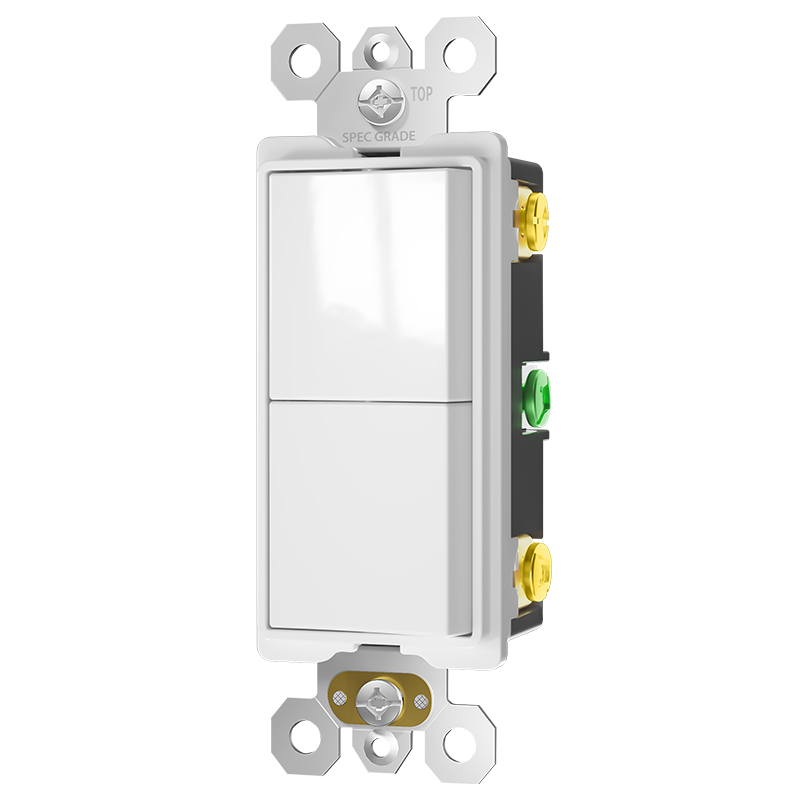

White-WH
-
Black-BK
-
Ivory-IV
-
Almond-AL
-

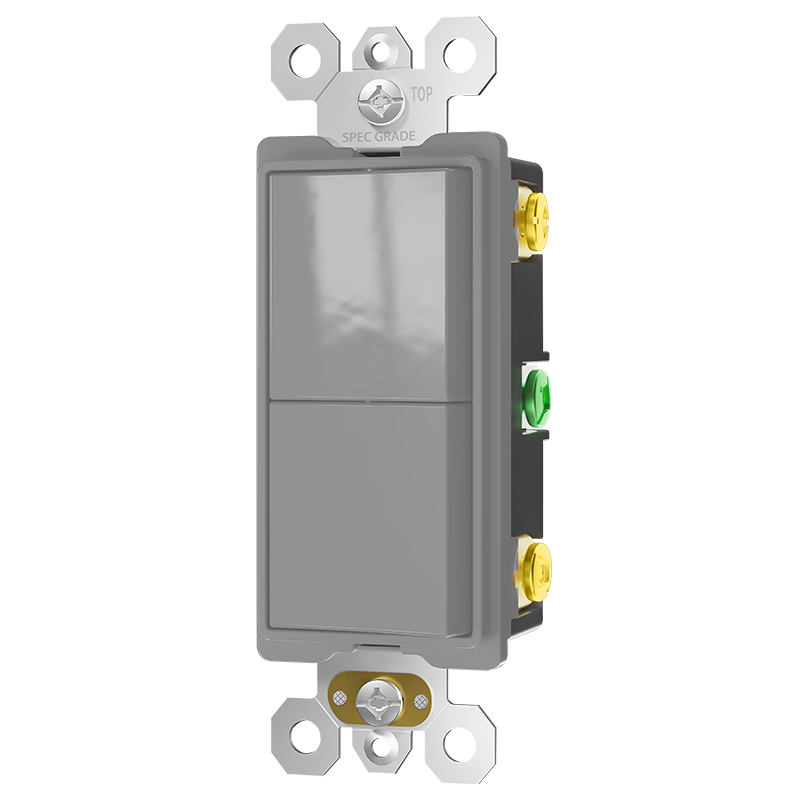

Grey-GR
-

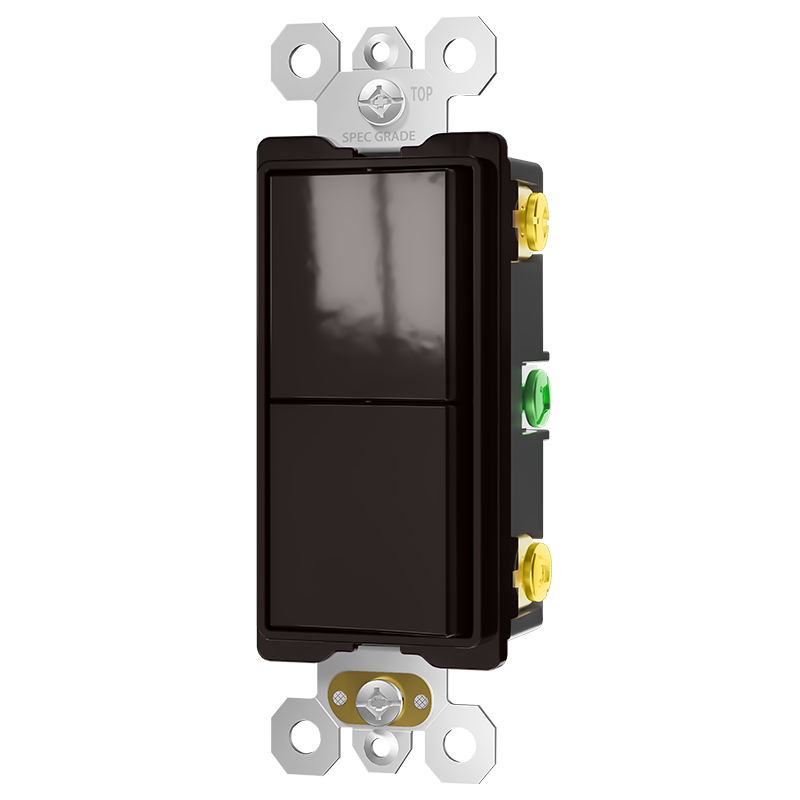

Brown-BR
-
Graphite-GP
Quantity:
Features & Benefits

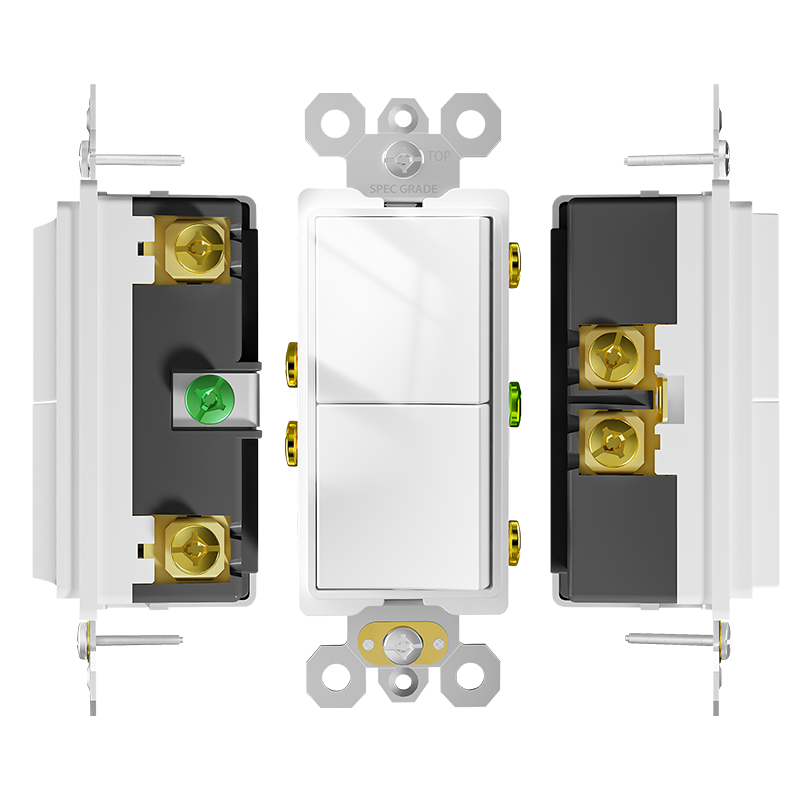

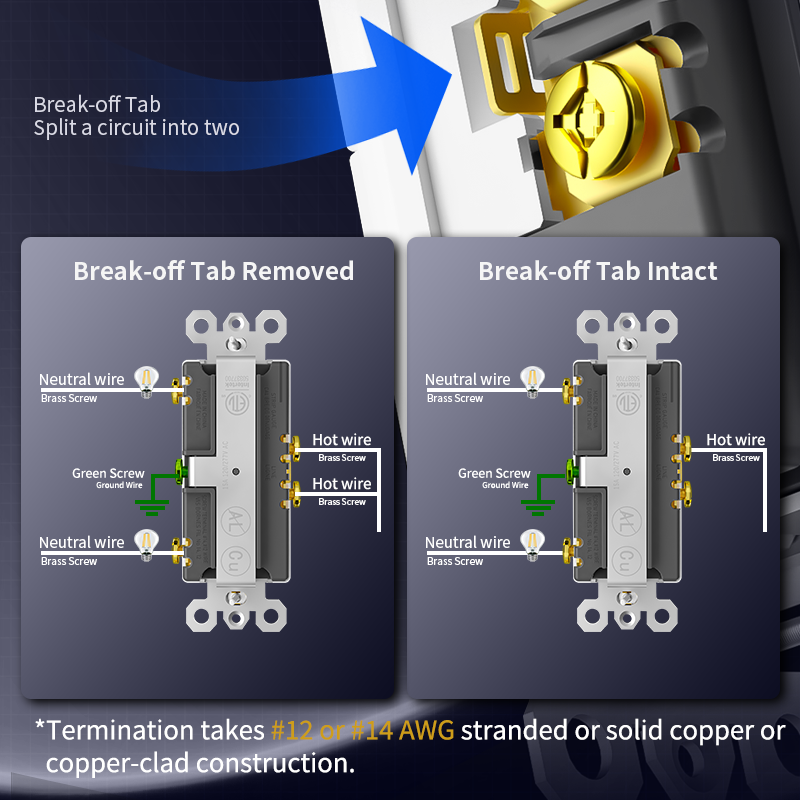

Break-Off Tab for Circuit Splitting：Built-in break-off tab lets you split a single circuit into two independent outputs for flexible wiring.

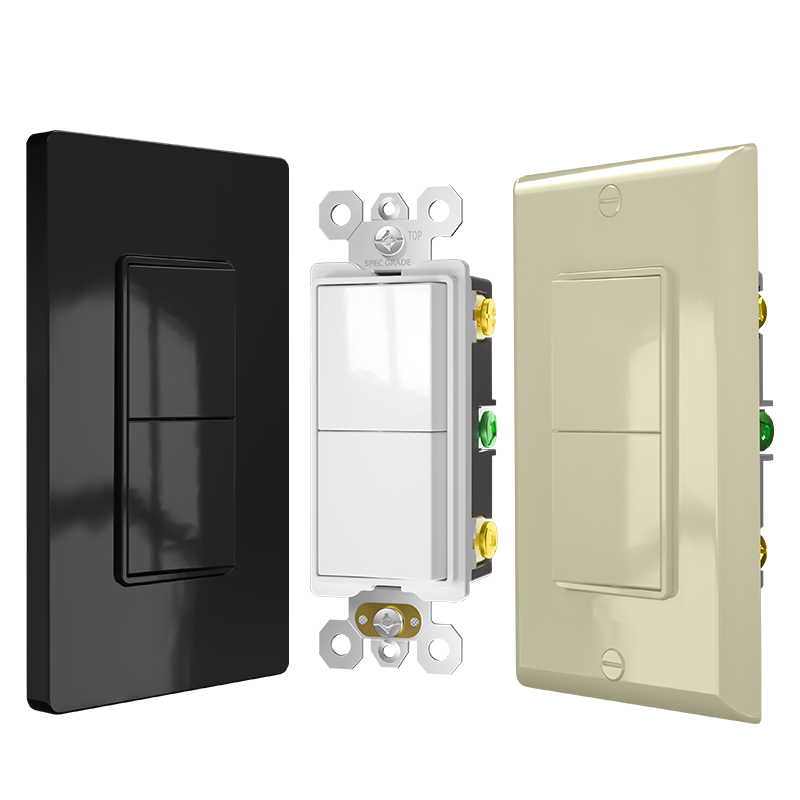

Dual Independent Control：Two separate rocker paddles control 2 distinct circuits from one wall plate, saving space for multi-light setups.

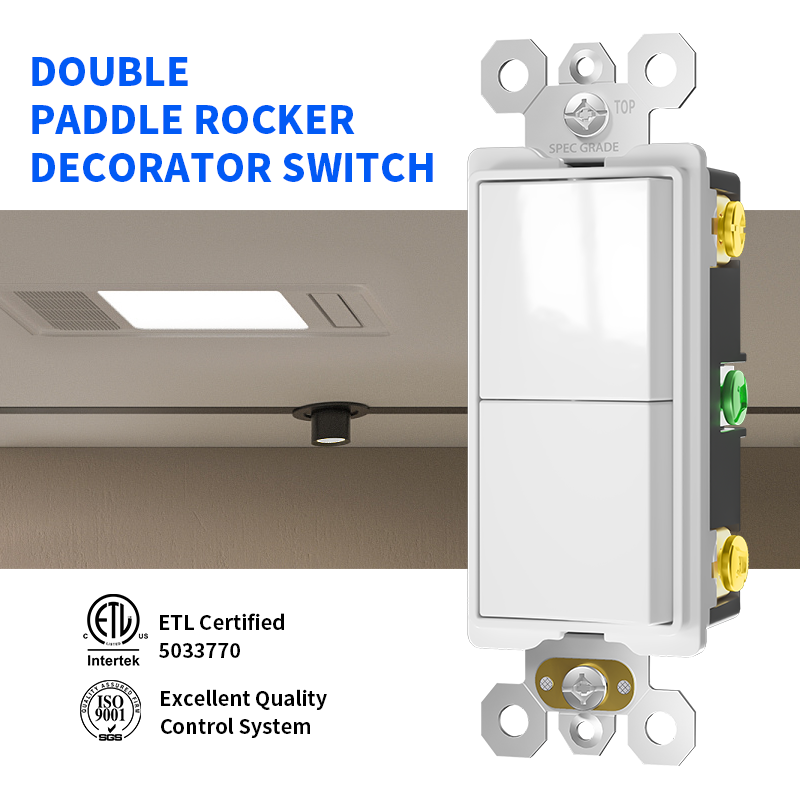

ETL Listed Safety：Fully ETL certified for North American electrical safety, with a dedicated green grounding screw for secure installation.
SPEC GRADE Durability：Commercial-grade construction for reliable, long-lasting performance in residential and commercial spaces.
Sleek Glossy FinishModern glossy design complements any decor, with a smooth, easy-to-clean surface that resists fingerprints, keeping your switch looking pristine for years.
Specifications
| Model | DS1502 |
| Certification | ETL |
| File No. | E5033770 |
| Grade | Residential & Commercial |
| Feature | Rocker Switch |

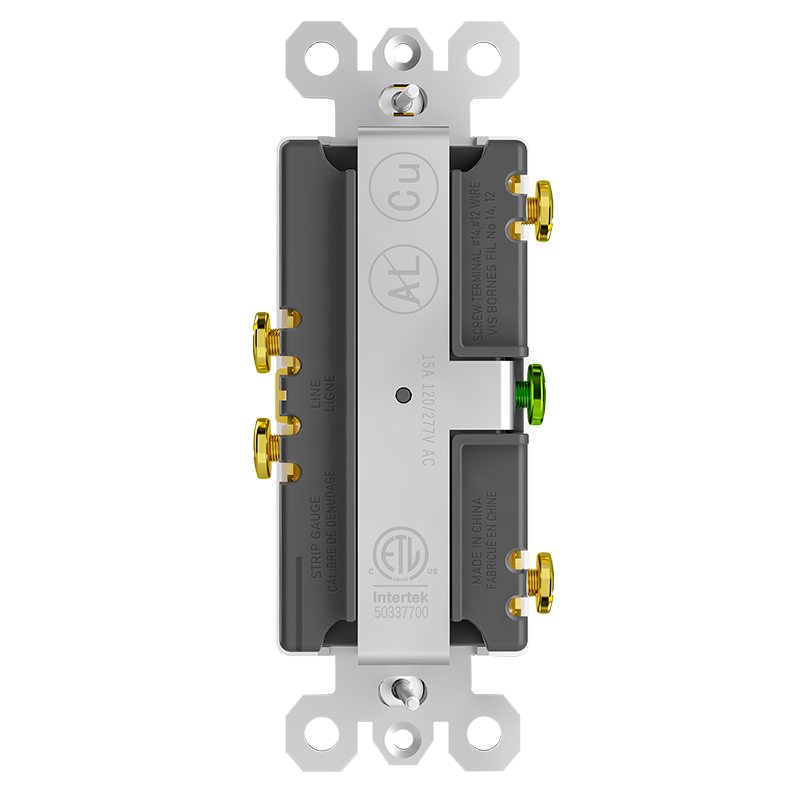

| Terminal Accommodation | #12 and #14 AWG stranded and copper wire |
| Wiring | Back Wire & Side Wire |
| Rating | 15A 120/277V AC |
| Mounting Type | Wall Mount |
| Pole & Wire | Single Pole, 3 Wire |
| Grounding | Self-Grounding with Extend Cooper Clip |
Material Characteristics
Front Cover/Body: High-Impact PC-Thermoplastic
Operation Temperature: -35 ℃~ 70 ℃
Environmental : Flammability UL-94 V2 Rating
Yoke: Zinc-Plated Steel 1.2mm Thick
Clamps: Phosphor Bronze 0.8mm Thick
Terminal Screws: Plated Steel
Warranty: 3 Years Limited

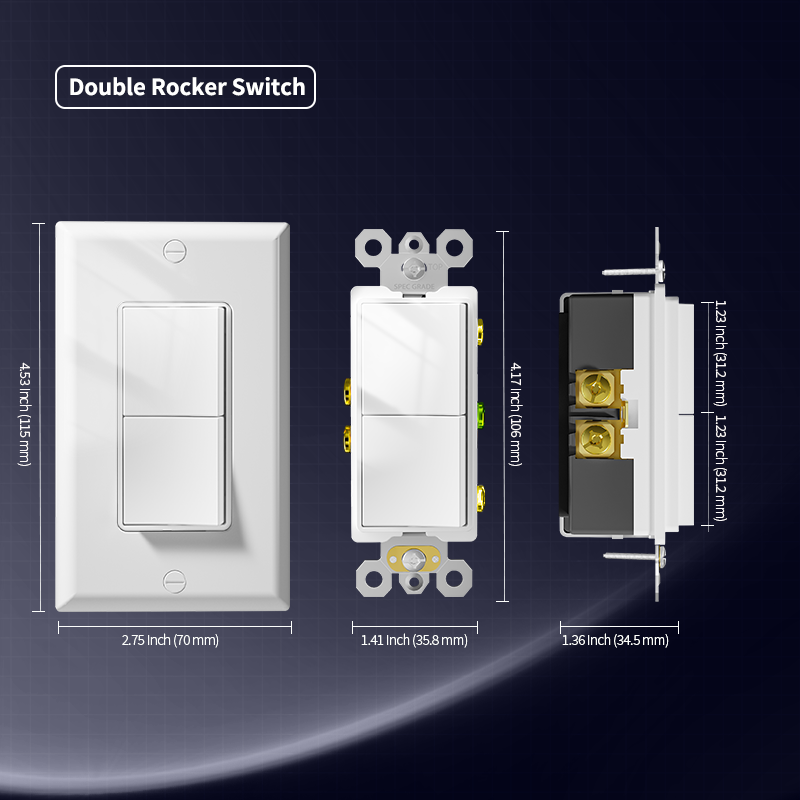

Diemension
