DS15.3

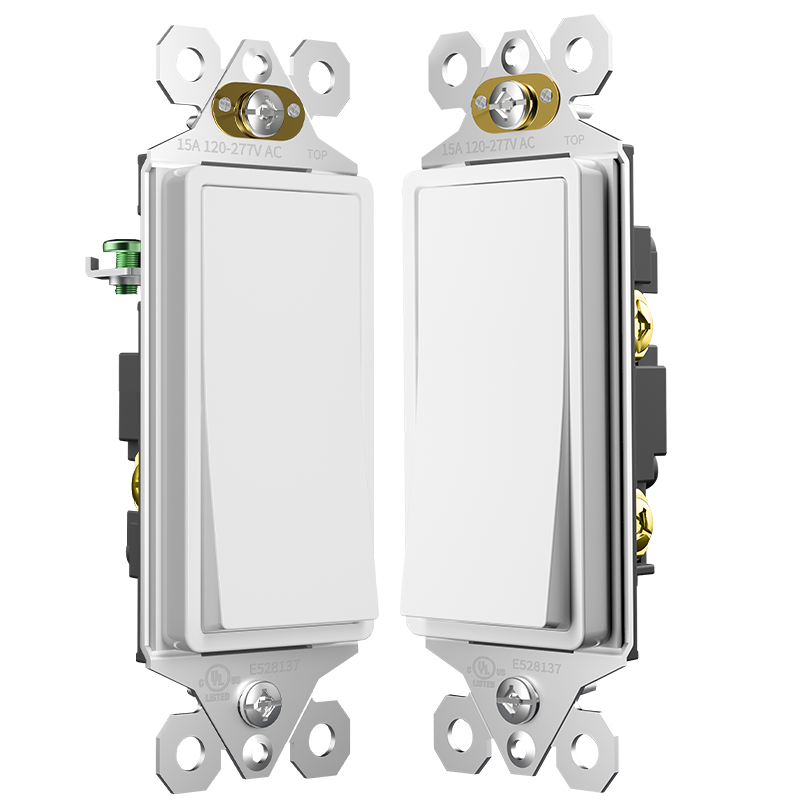

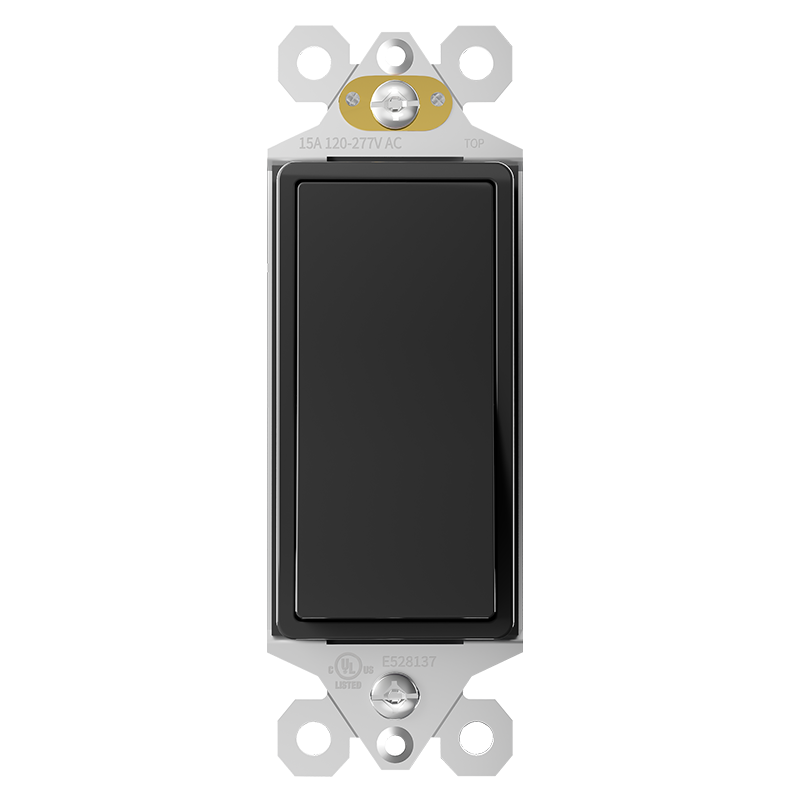

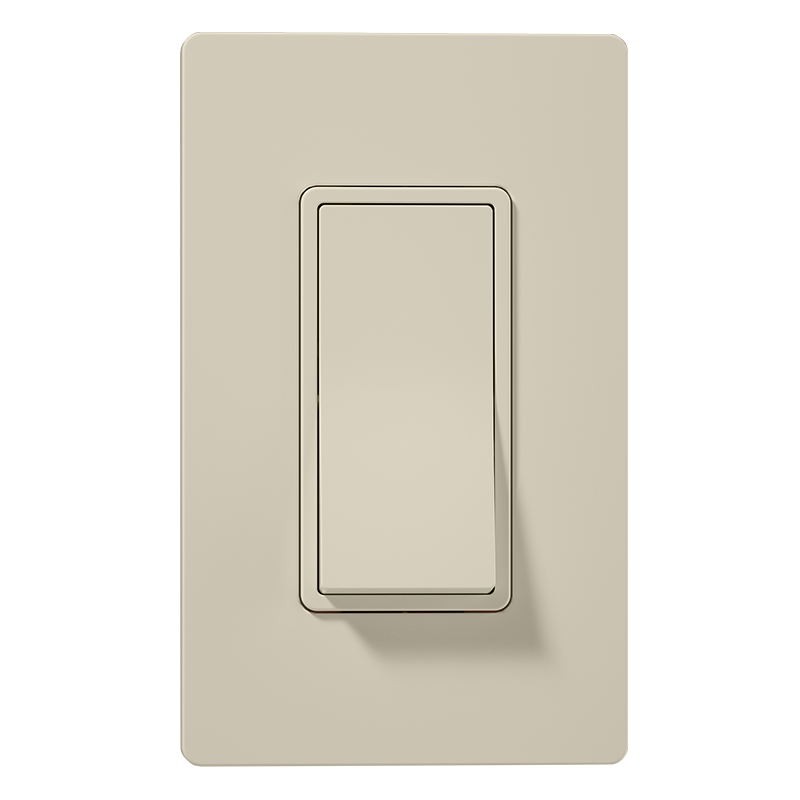

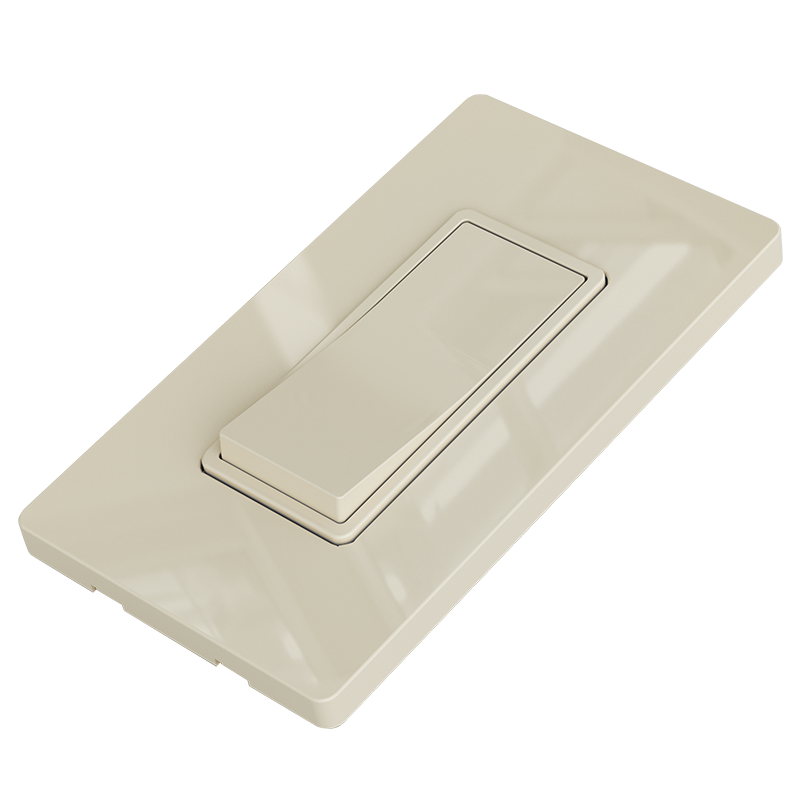

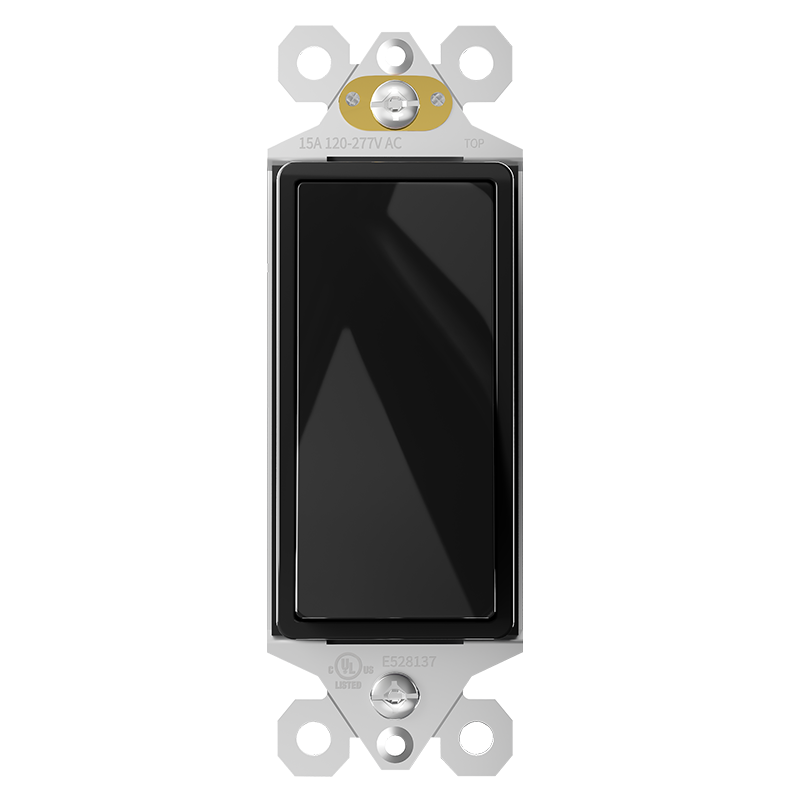

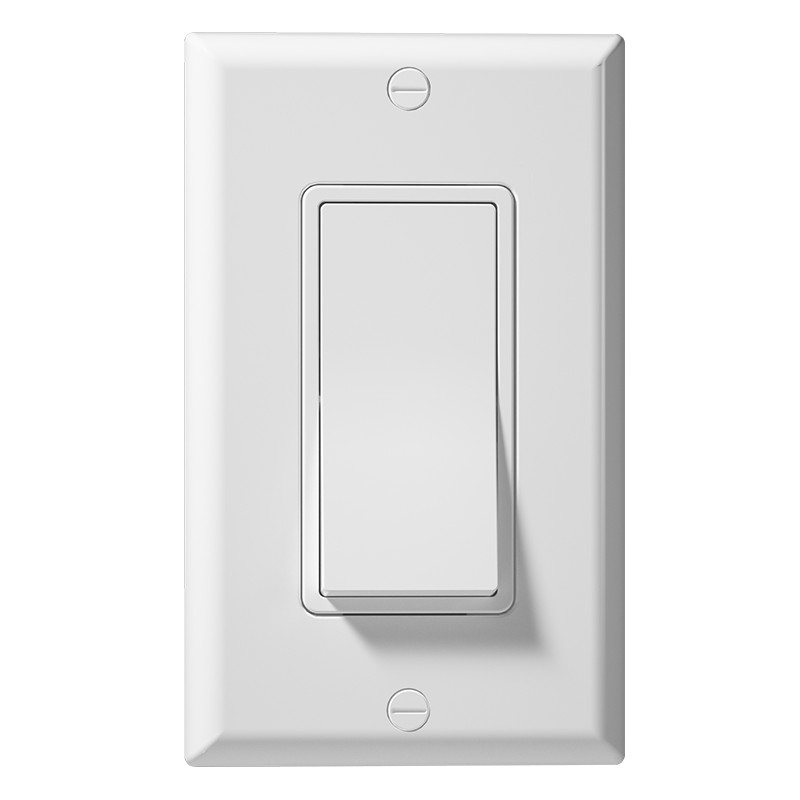

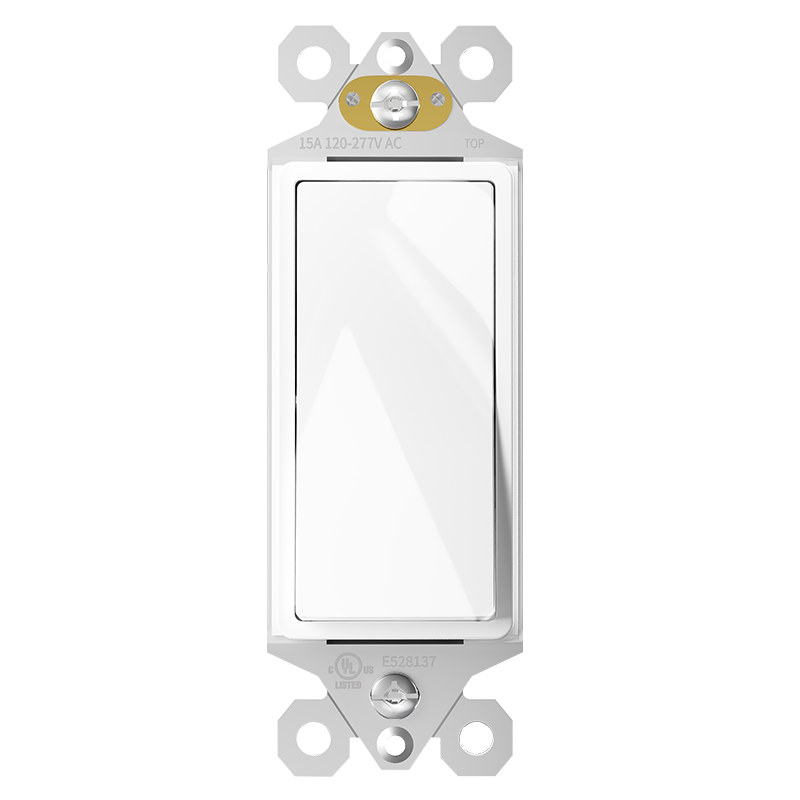

15A 120-277V 3-Way Decorator Rocker Wall Switch, UL Listed, Push-In & Screw Terminals
Language
<
Return to main menu
Color:
-
White-WH
-
Black-BK
-

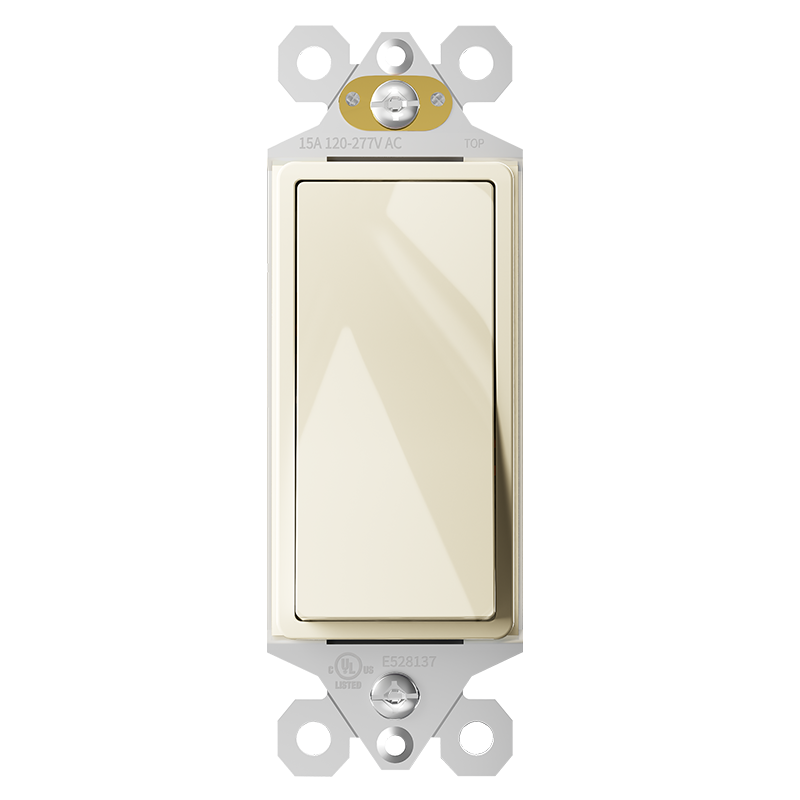

Ivory-IV
-
Almond-AL
-

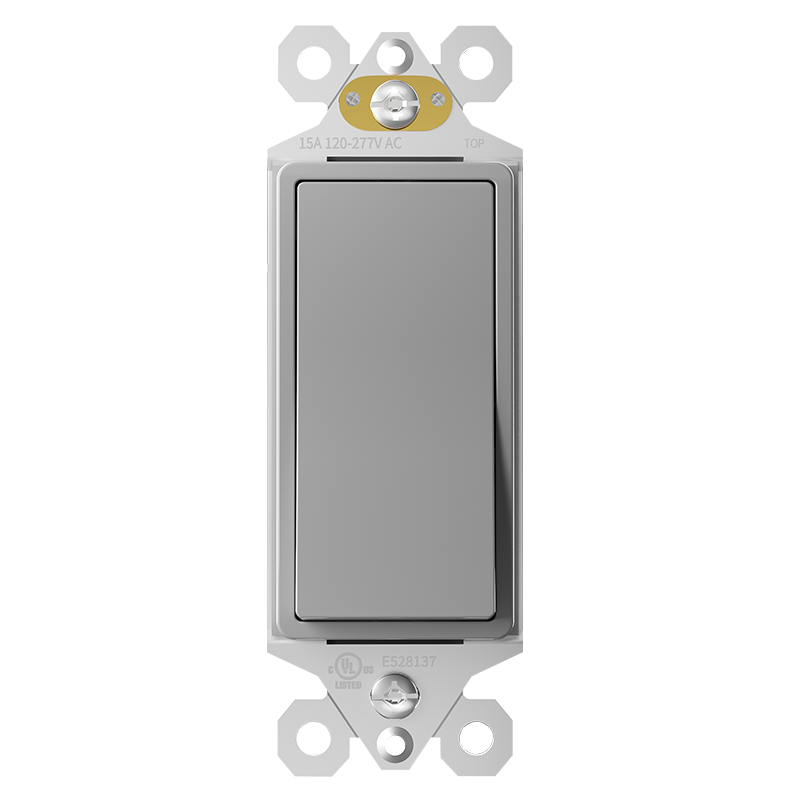

Grey-GR
-
Brown-BR
-
Graphite-GP
Quantity:
Features & Benefits
UL Certified Safety：UL Listed (E528137), 15A 120-277V rated, NEC compliant for residential & commercial use.

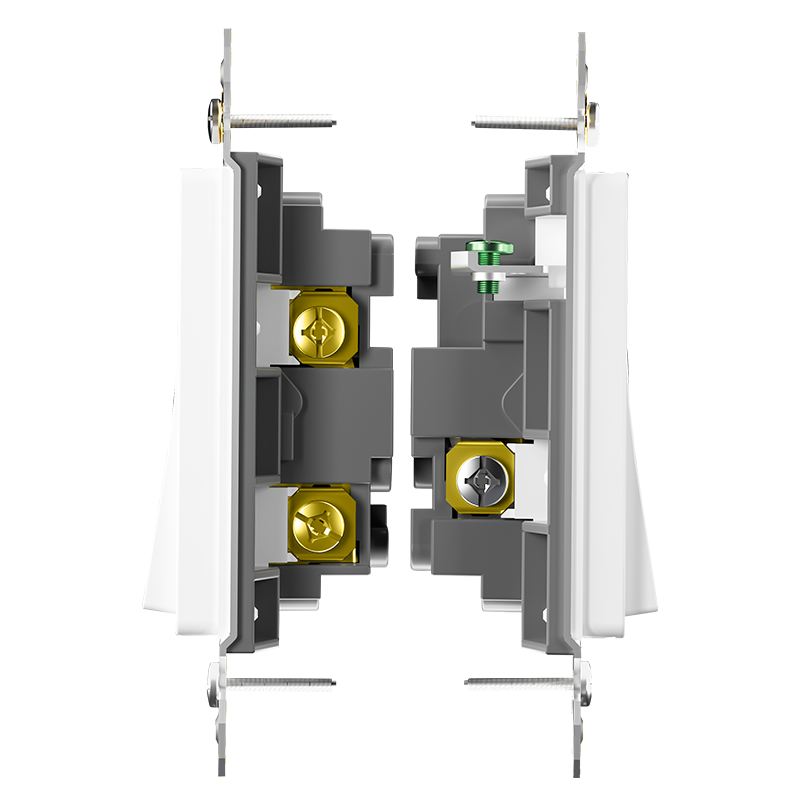

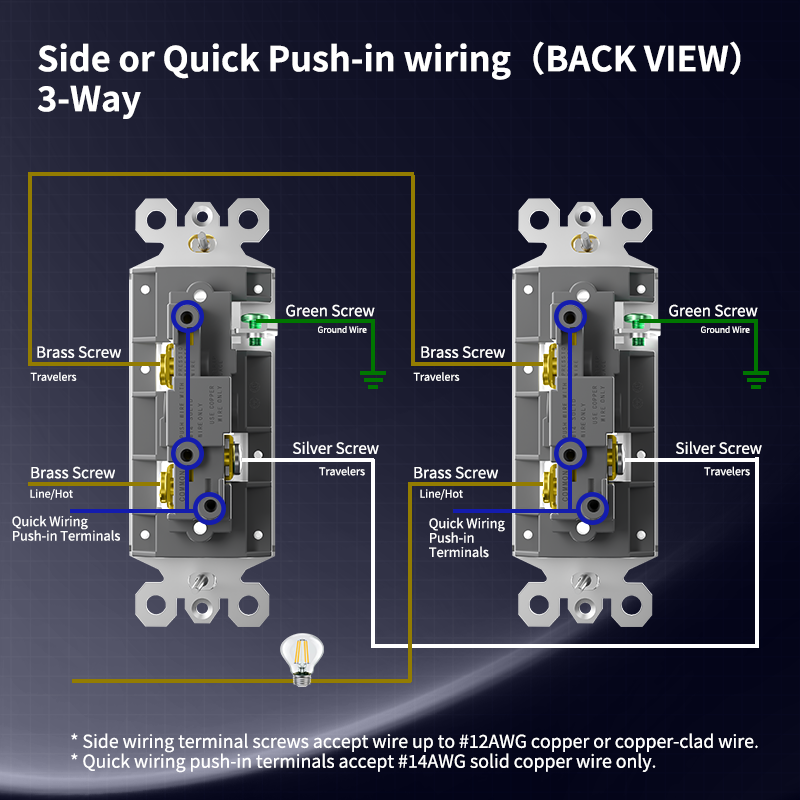

Dual Wiring Options：Push-in quick-connect + side screw terminals, easy installation & rework.

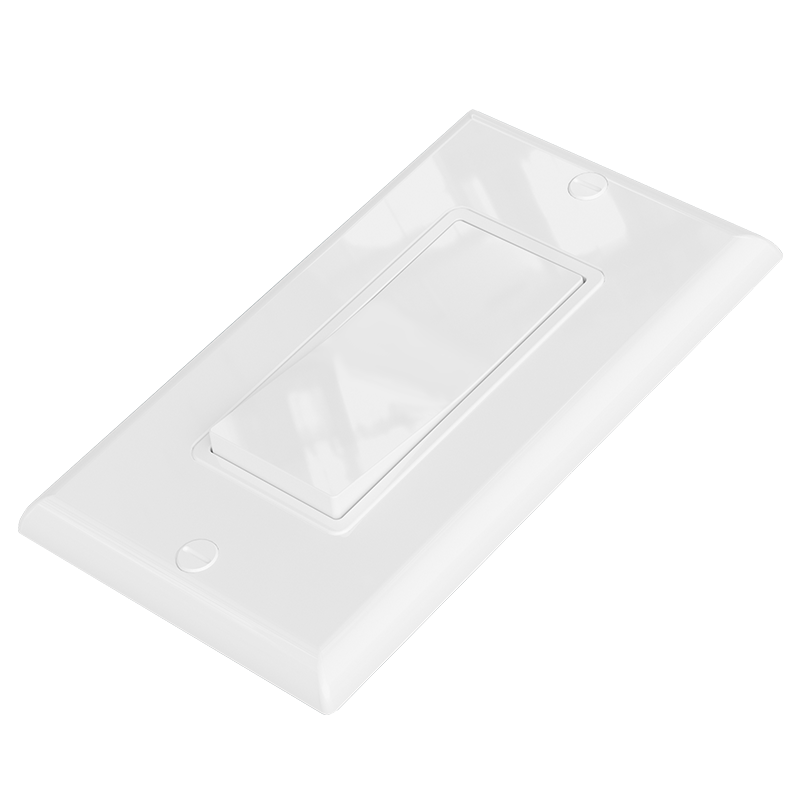

Modern Decorator Style：Slim rocker design, fits standard wall boxes, blends with any decor.
3-Way：Supports 3-way; perfect for hallway, stairwell and large room lighting control.
Durable & Premium Finish：Fire-resistant housing, corrosion-resistant brass terminals, featuring a sleek glossy/matte white finish that resists scratches and discoloration.
Specifications

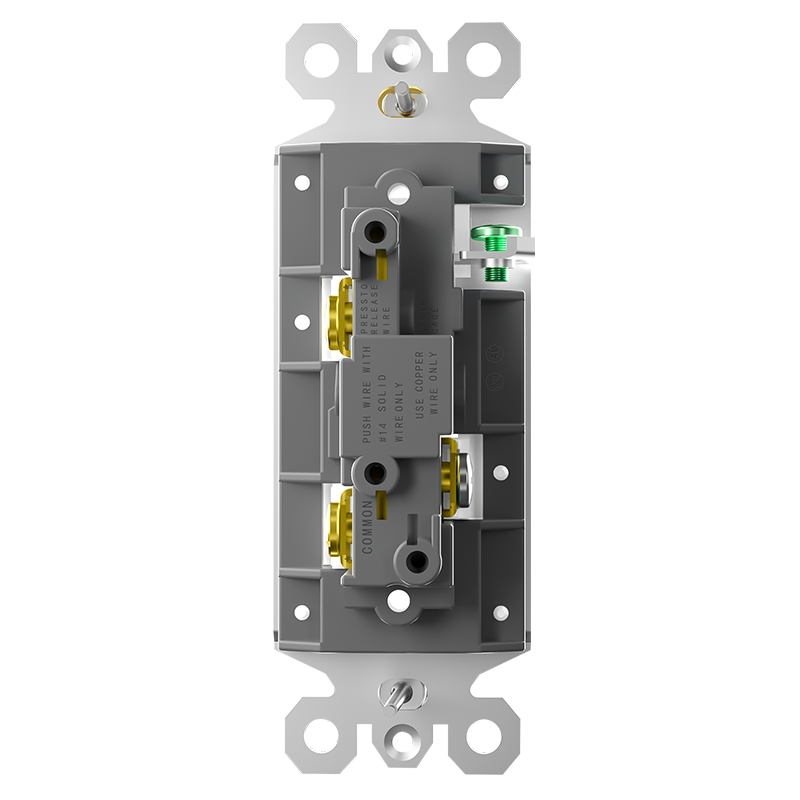

Terminal Identification
| Model | DS15.3 |
| Certification | UL/cUL |
| File No. | E528137 |
| Grade | Residential & Commercial |
| Feature | Rocker Switch |
| Terminal Accommodation | #12 and #14 AWG stranded and copper wire |
| Wiring | Push-in Quick Wire(#14 AWG only) & Side Wire |
| Rating | 15A 120/277V AC |
| Mounting Type | Wall Mount |
| Pole & Wire | 3-Ways, 3 Wire |
| Grounding | Self-Grounding with Extend Cooper Clip |
| Terminal Identification | Terminal identification in accordance with UL20 |
| Flammability | UL20 Minimum Rating |
Material Characteristics
Front Cover/Body: High-Impact PC-Thermoplastic
Operation Temperature: -35 ℃~ 70 ℃
Environmental : Flammability UL-94 V2 Rating
Yoke: Zinc-Plated Steel 1.2mm Thick
Clamps: Phosphor Bronze 0.8mm Thick
Terminal Screws: Plated Steel
Warranty: 3 Years Limited

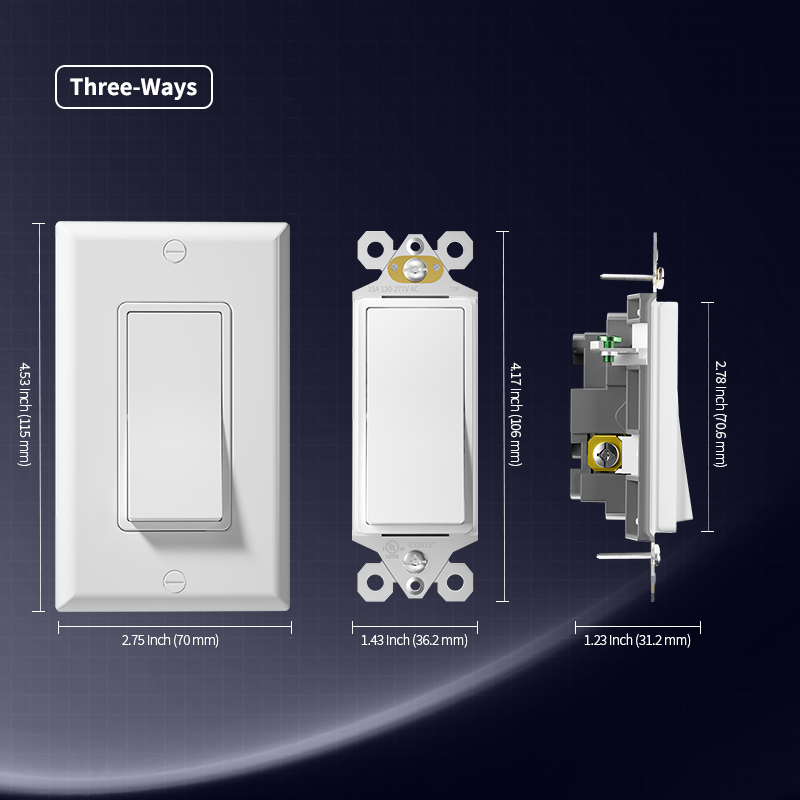

Diemension
