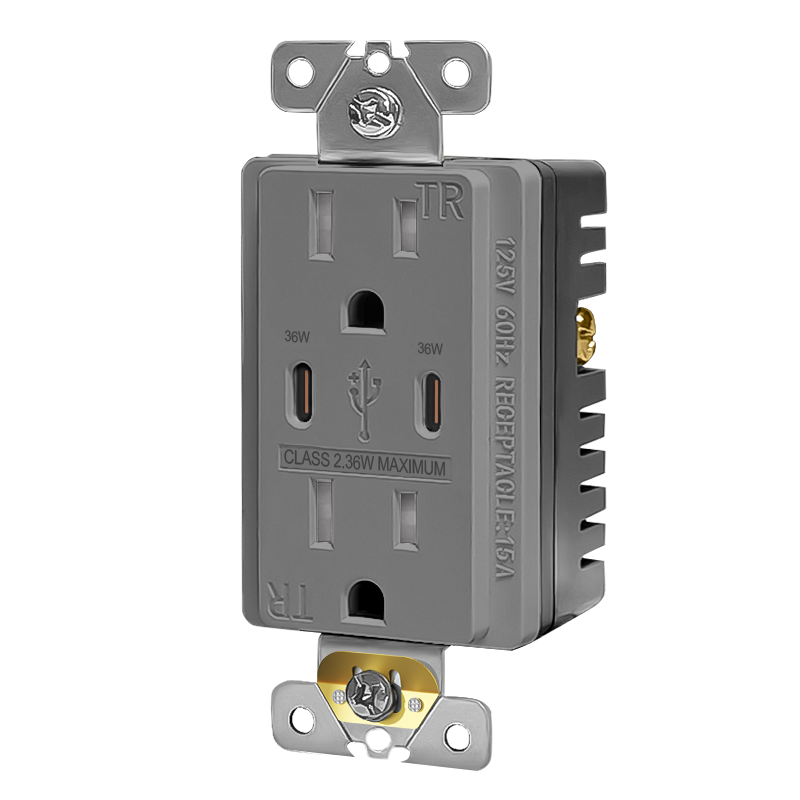

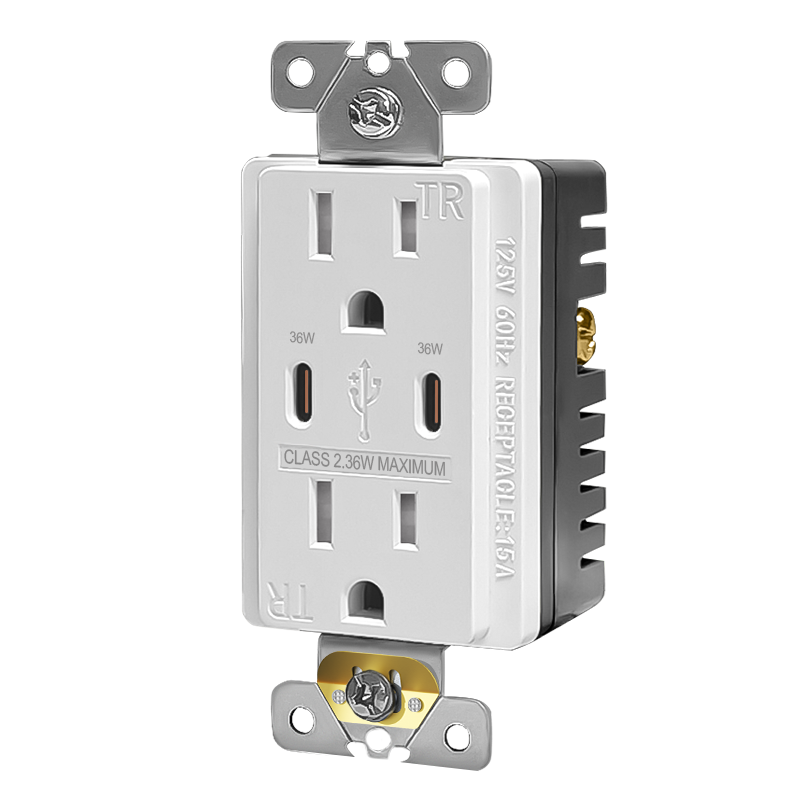

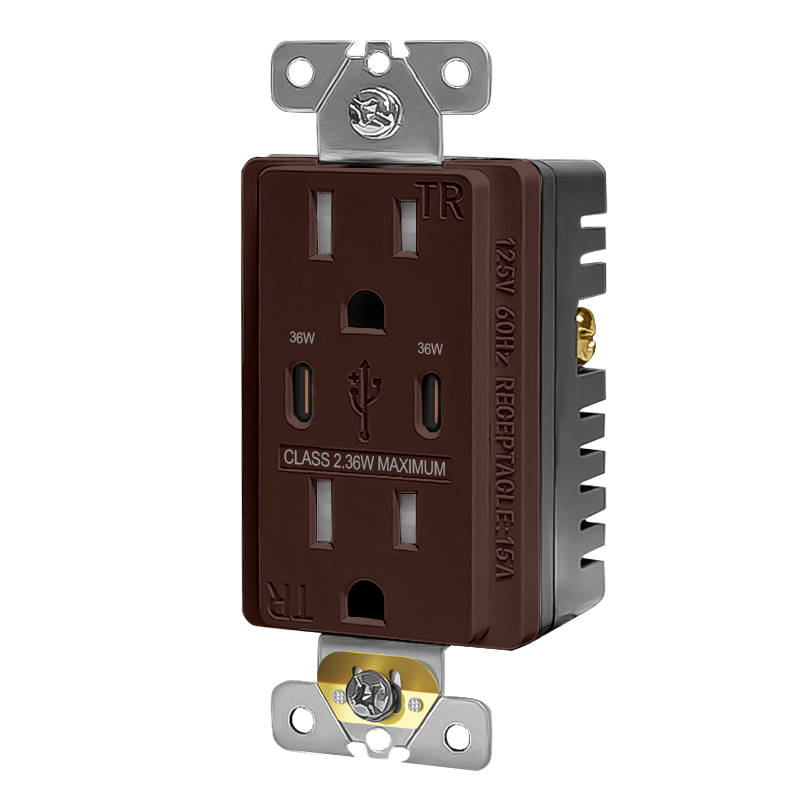

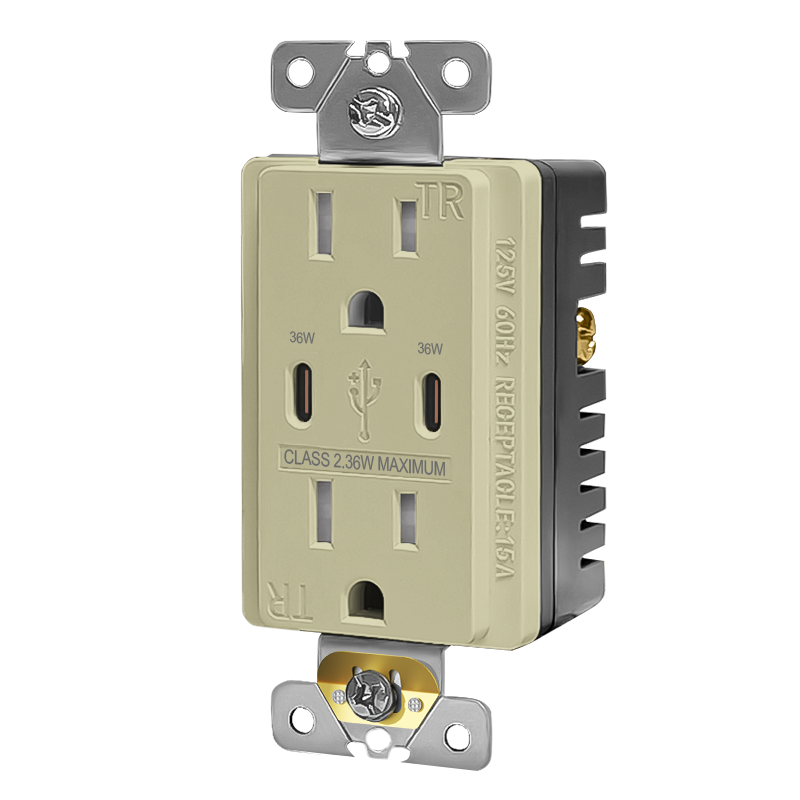

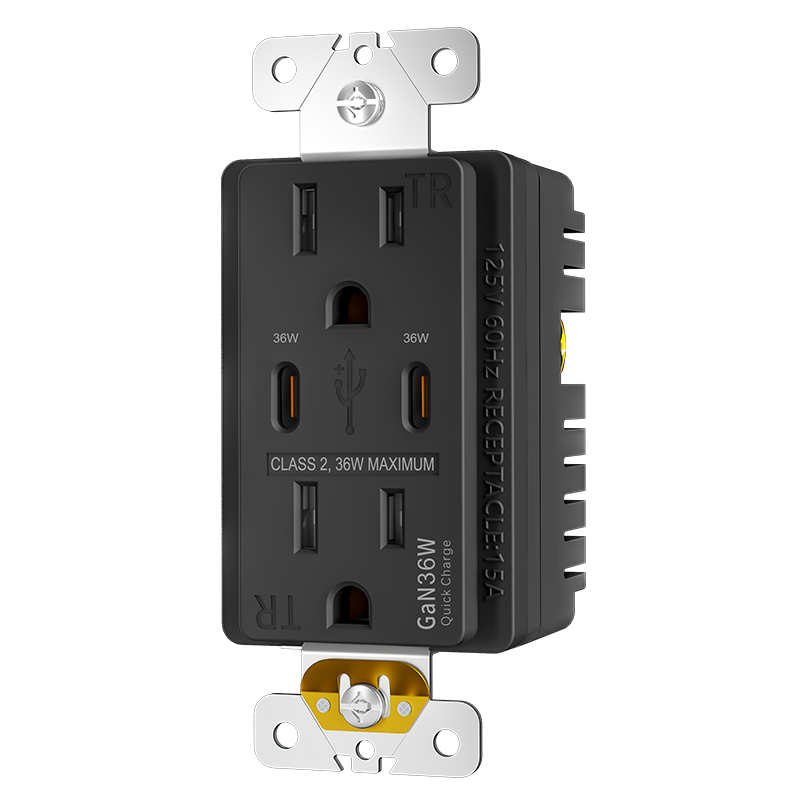

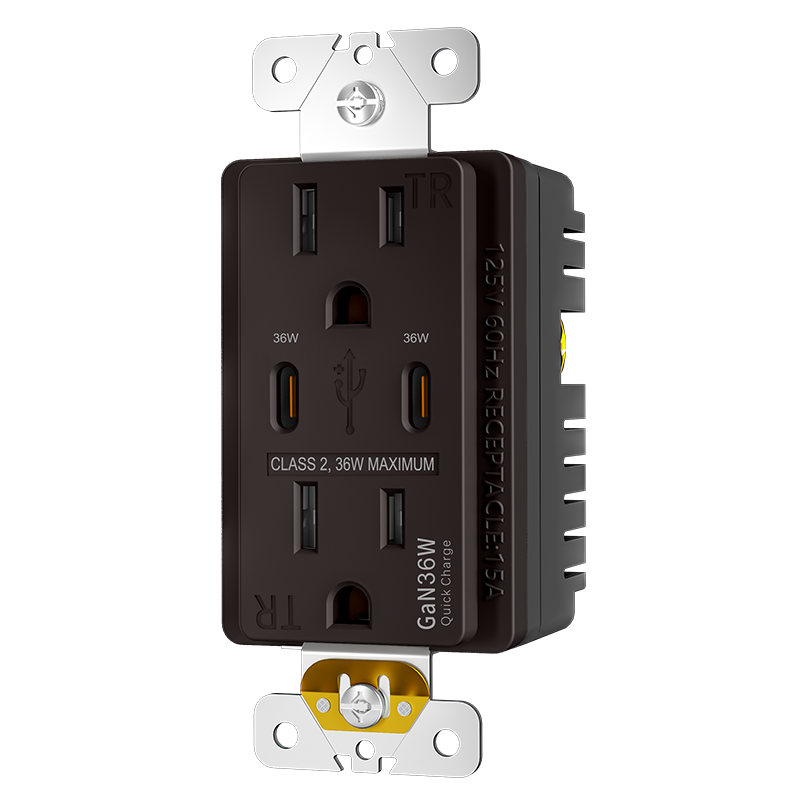

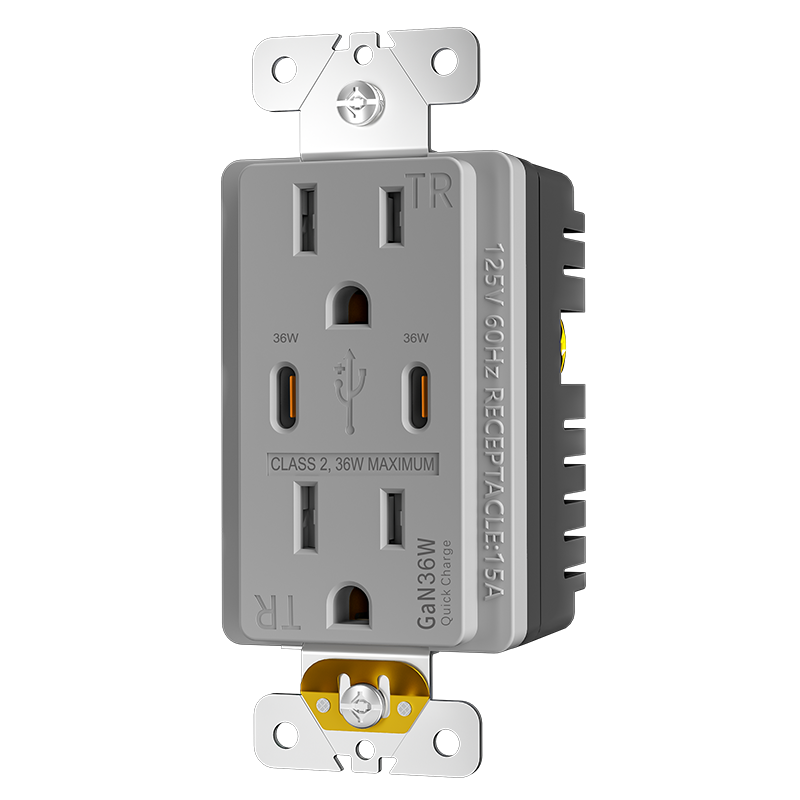

FTR15QC PD36W C+C
15A Outlet Receptacle, Power Deliver PD36W Fast Charge & Power Delivery Dual USB Type C Wall Outlet, Tamper Resistant, UL Listed, Wall Plate Included
UL/cUL Listed E498095
15A Outlet Receptacle, Power Deliver PD36W Fast Charge & Power Delivery Dual USB Type C Wall Outlet, Tamper Resistant, UL Listed, Wall Plate Included
UL/cUL Listed E498095
UL/cUL certified File No.E498095;
PD36W Quick Charging USB Outlet Fast Charging to Revitalize Your Devices Instantly.
Residence Homelife
Laundry rooms, Living rooms, Kitchens, Basements, Garages,
Commercial Offices Retail shopping Malls
Public areas, Restaurants, Shopping Center, Lounges;
Airport, Train Station waiting rooms, Coffee Center;
Education Facilities
Classrooms, Restrooms, Laboratories;
Warranty for 3 years;

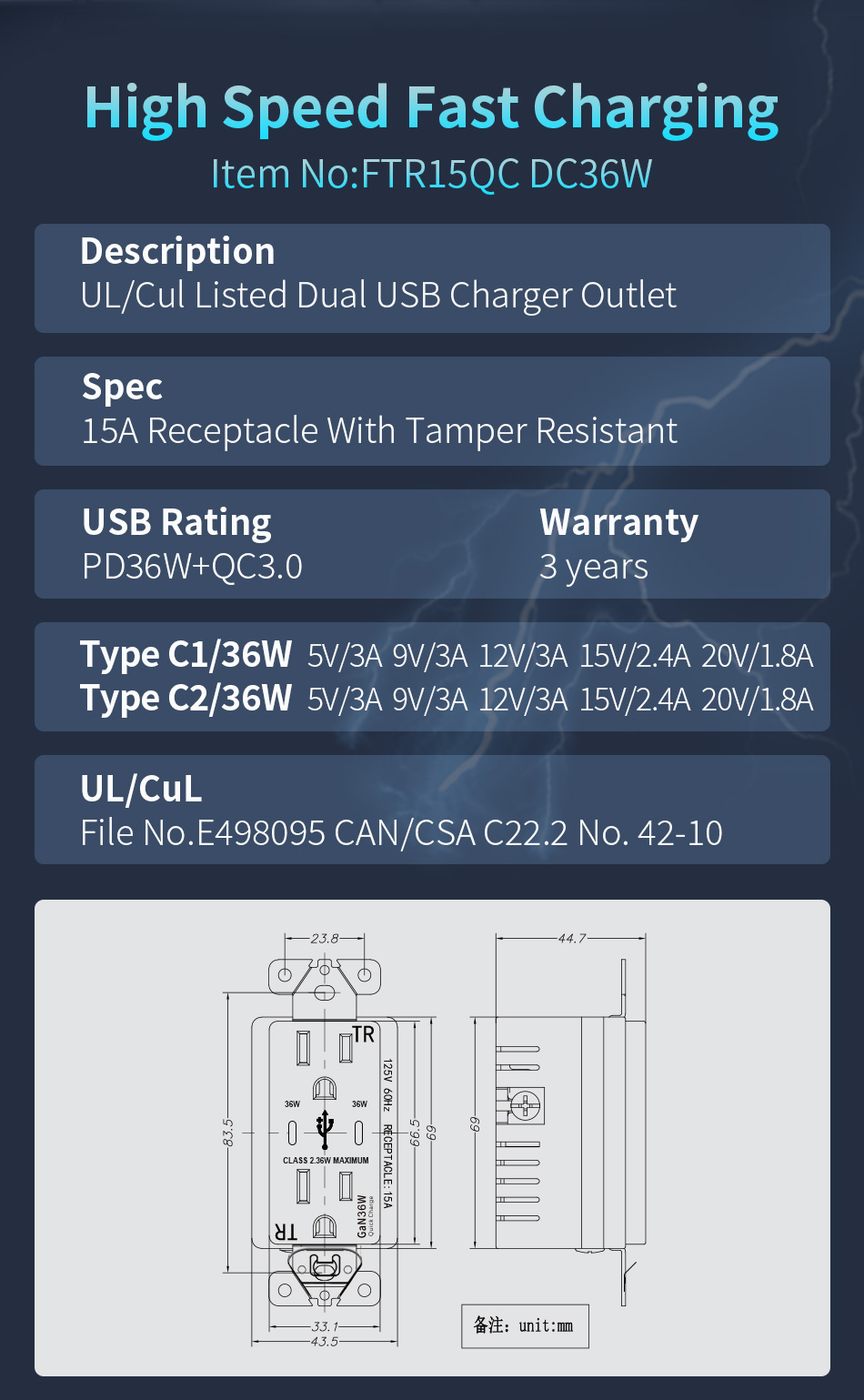

Model | FTR15QC PD36W C+C |
Certification | UL/CUL |
Standard | UL498/CSA C22.2 No. 42, 7th Ed |
Receptacle Rating | 15A,125V NEMA 5-15R |
USB Type | USB C*1 and USB C*1 |
USB C | Up to PD36W |
USB C | Up to PD36W |
Operating Temp | -35℃ to 66℃ (-30℉ to 150℉) |
Wiring Method | Side Wire & Back Wire |
Wire Gauge | #12~#14 AWG Copper Wire |
Grade | Residential & Commercial Grade |
Pole & Wire | 2-Pole, 3-Wire |
Grounding | Self-Grounding |
Tamer-Resistant | Yes |
Weather-Resistant | Non |
Wallplate | Standard / Screwless Wallplate Optional |
Material: Face, Thermoplastic; Body, Thermoplastic;
0.8mm thick high-precision phosphorus bronze;
1.2mm thick galvanized steel bracket;
Silver alloy contacts with 30 silver layer thick;
Coated PC board with Smart chip MCU to protect critical components from moisture;
Environmental: Flammability UL-94 V1 Rating.
Smart Built-in smart chip recognizes the individual device’s charging requirements to optimize the charge;
Powerful Two high-powered charging ports deliver a combined total of up to PD36W power;
Convenient No more searching for charging adapters. Upgrade your existing outlets so youcan charge up to two USB powered devices at once, leaving the outlets free for additional power needs;
The future of charging USB Type-C provides faster charging and is emerging as the standard port on many phones, and tablets, iPhone, iPad, iPad Mini, LG, HTC, Android, tablets, headset and much more without the need of power adapters;
Enhanced Safety Built-in protection helps prevent the device from overheating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets;
Easy Installation Compact design fits in a standard wall box and compatible with Decora and Decora Plus screwless wall plates, back and side wired for easy installation;
UL/cUL Listed Compatible with USB 1.1/2.1/3.0 devices. Designed for back and side wiring for easy installation;
Tamper Resistant Outlets Duplex 15/20 Amp receptacles comply with NEC requirement mandating that receptacles installed in dwelling units must be listed as tamper-resistant. Shutter mechanism inside the receptacle blocks the access to
the contacts unless a two-or-three-prong plug is inserted, preventing young children from inserting unwanted objects into the outlets.
