GT20

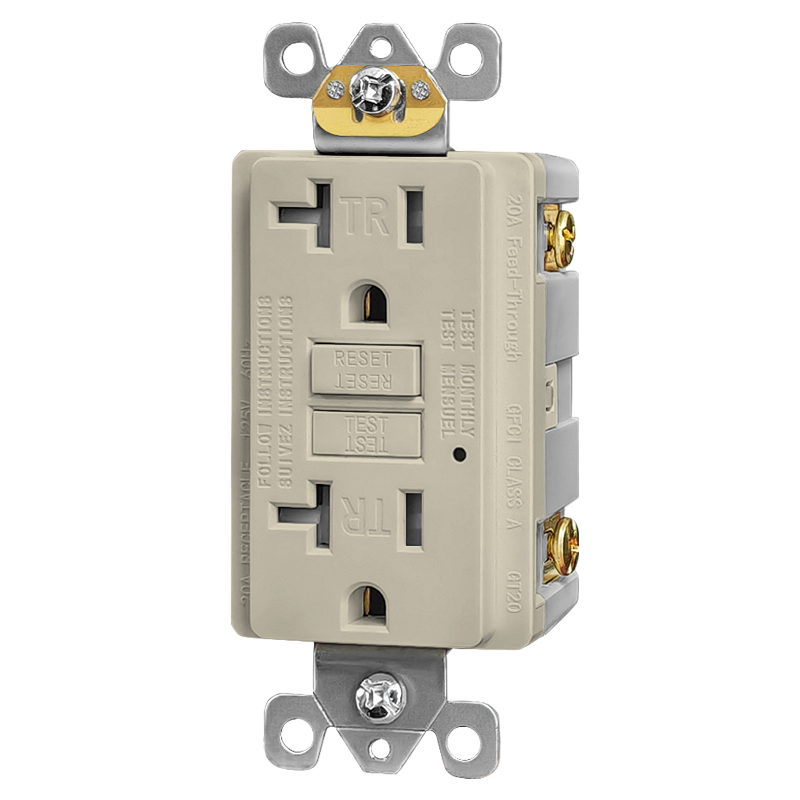

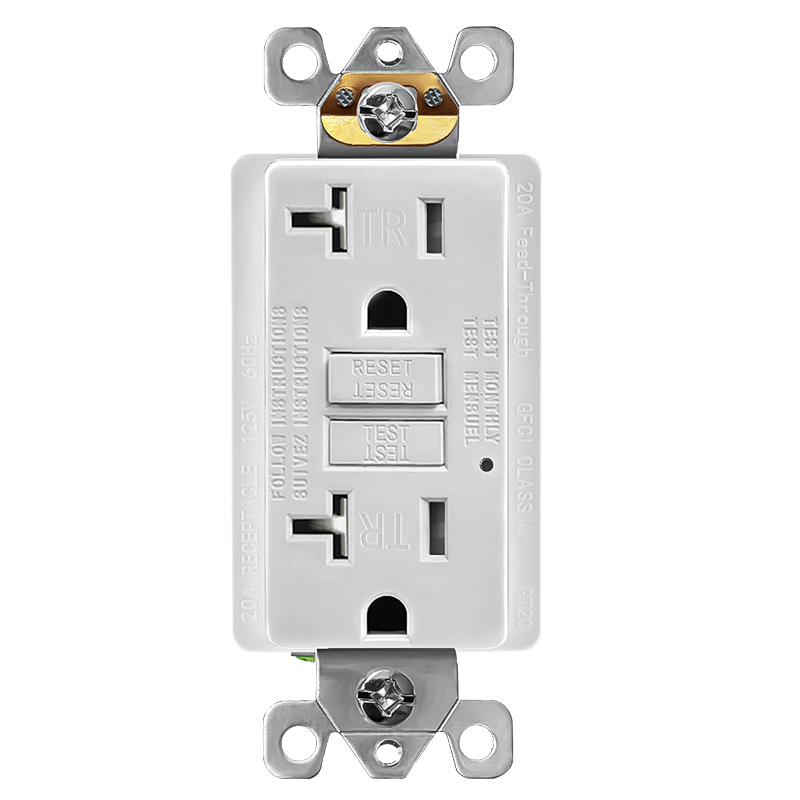

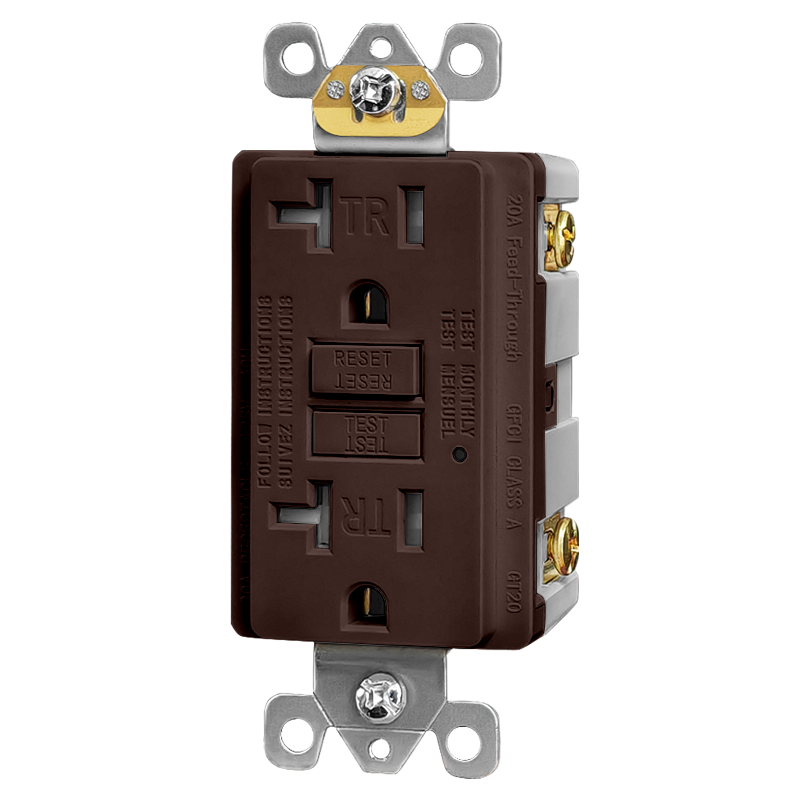

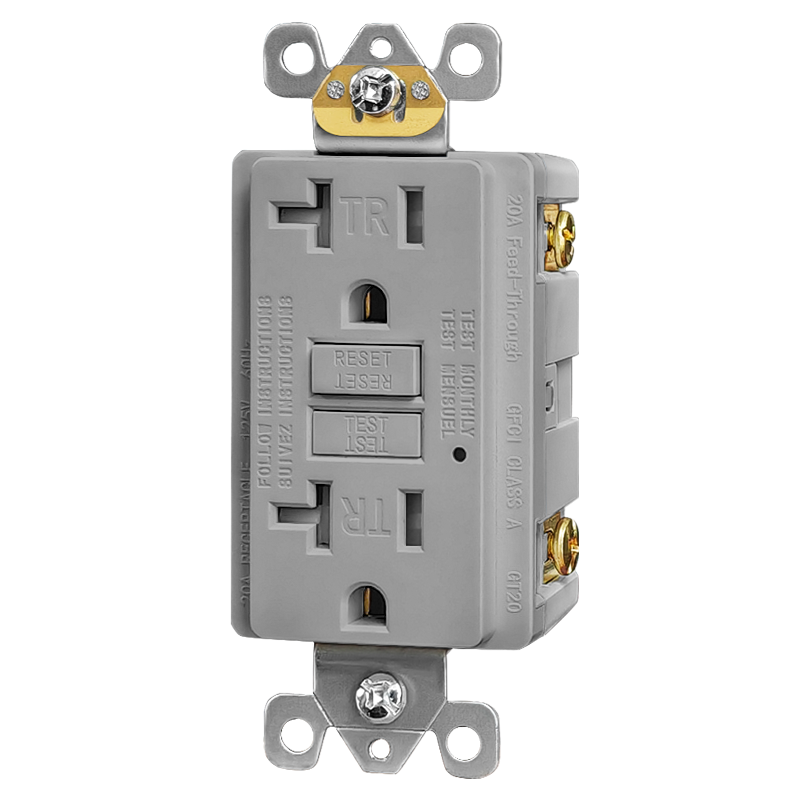

20 Amp, 125 Volt GFCI Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test GFCI, back and side wired, 2-pole,3-wire, NEMA 5-20R, Self-Grounding clip, with Standard wallplate/Screwless optional.
20 Amp, 125 Volt GFCI Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test GFCI, back and side wired, 2-pole,3-wire, NEMA 5-20R, Self-Grounding clip, with Standard wallplate/Screwless optional.
UL/cUL certified File No.E504391;
Once power up, tests the GFCI within 3 seconds;
Safe & Reliable performance on Self-Test program controlled by MCU;
No power to the face outlet or downstream receptacle if wired incorrectly,but Green Led on Remind users of Incorrect Wiring;
Under regular working condition/full load 20Amp working condition, temperature rise below 20K/33K;
High strength fire-resistant and flame-retardant PC material V-1 per UL94;
Integrated high-strength brass components 0.8mm thickness while silver contact thickness 0.4mm;
Strengthen wiring screws to prevent slipping, torque over 2N.m, (Standard requirement 1.6 Nm);
Long Service-Life dual LED indicator lights, (Green & Red)soft brightness, friendly night sleeping, Service-Life >5 years;
100% testing by Auto-equipment detection, qualified rate 99.99%;
Trip threshold meets or exceeds UL requirements for tripping time <25ms 4~6mA;
Both China and USA patents protected;
Warranty for 3 years;
Model | GT20 |
Certification | UL/CUL |
Standard | UL943/UL498/UL1998 |
Amperage | 20A |
Rating Voltage | 125V AC |
Working Voltage | 102V~132V |
Trip Level | 4mA~6mA <25ms |
Operating Temp | -35℃ to 66℃ (-30℉ to 150℉) |
Wiring Method | Side Wire & Back Wire |
Wire Gauge | #12~#14 AWG Copper Wire |
Grade | Residential & Commercial Grade |
NEMA | 5-20R |
Pole & Wire | 2-Pole, 3-Wire |
Grounding | Self-Grounding |
Tamer-Resistant | Yes |
Weather-Resistant | Non |
Usage | Indoor Only |
Material: Face, Thermoplastic; Body, Thermoplastic;
0.8mm thick high-precision phosphorus bronze;
1.2mm thick galvanized steel bracket;
Silver alloy contacts with 30 silver layer thick;
Coated PC board with Smart chip MCU to protect critical components from moisture;
Environmental: Flammability UL-94 V1 Rating.
