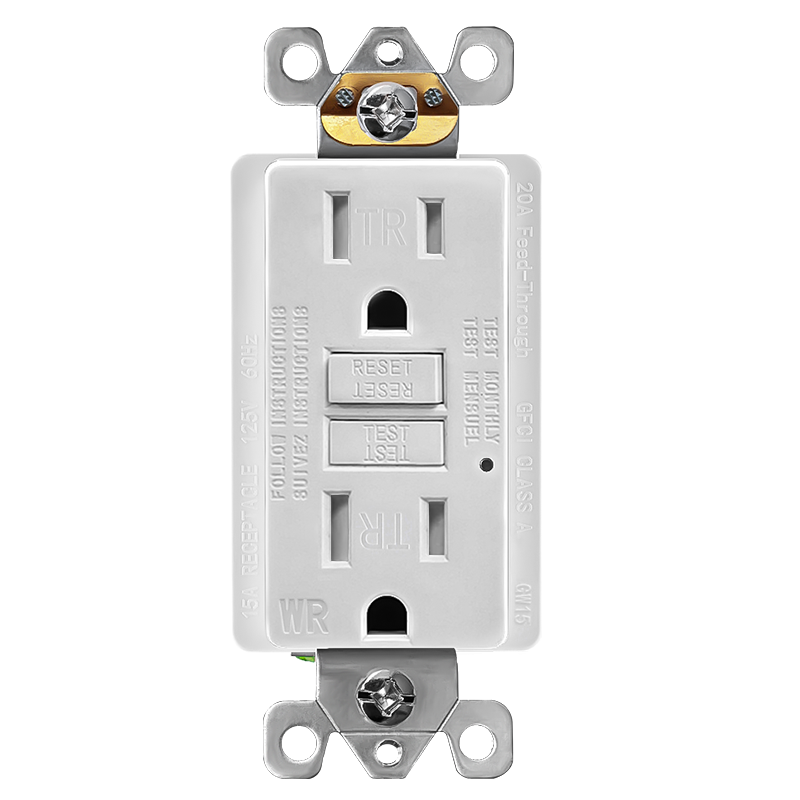

GW15

15 Amp, 125 Volt GFCI Outlet, 20 Amp Feed-Through, Tamper-Resistan & Weather-Resistant, Self-test GFCI, back and side wired, 2-pole,3-wire, NEMA 5-15R, Self-Grounding clip, with Standard wallplate/Screwless optional.


Color:

  • White-WH

  • Black-BK

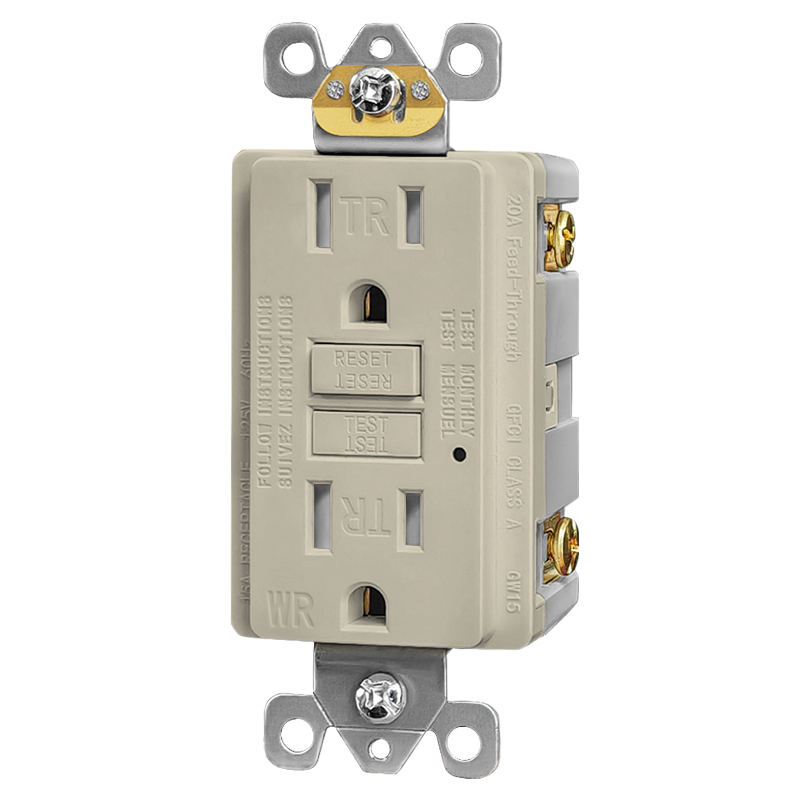

  • Ivory-IV

  • Almond-AL

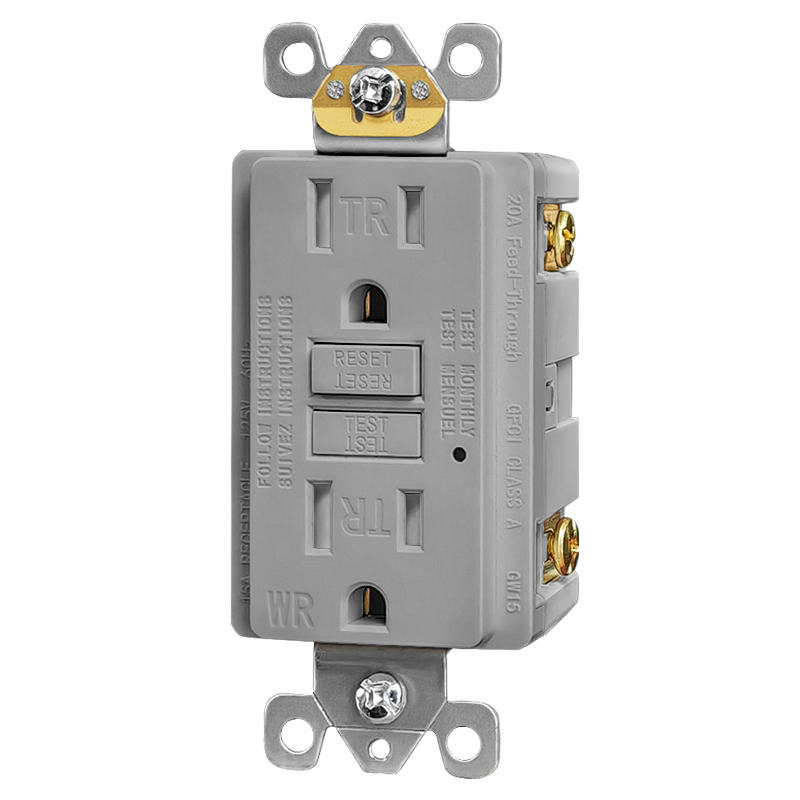

  • Grey-GR

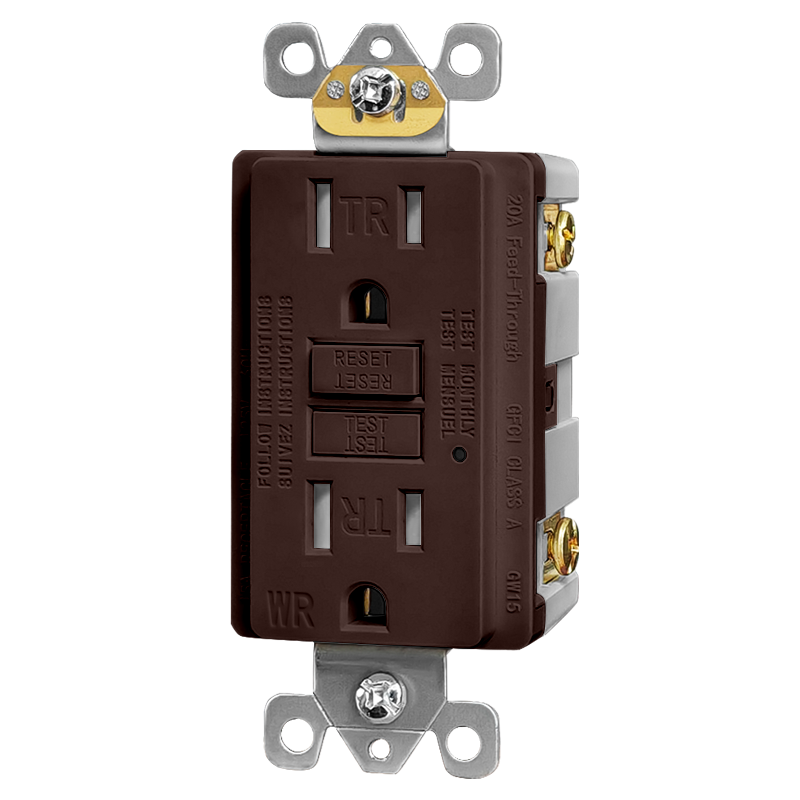

  • Brown-BR

  • Graphite-GP

Quantity:

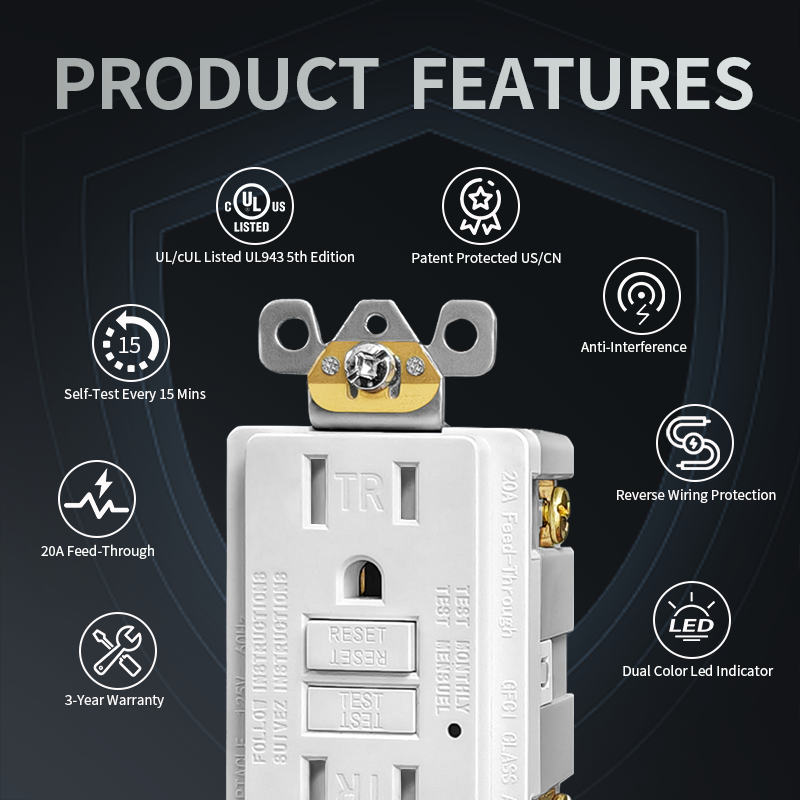

Features & Benefits

UL/cUL certified File No.E504391;

Once power up, tests the GFCI within 3 seconds;

Safe & Reliable performance on Self-Test program controlled by MCU;

No power to the face outlet or downstream receptacle if wired incorrectly,but Green Led on Remind users of Incorrect Wiring;

Under regular working condition/full load 20Amp working condition, temperature rise below 20K/33K;

High strength fire-resistant and flame-retardant PC material V-1 per UL94;

Integrated high-strength brass components 0.8mm thickness while silver contact thickness 0.4mm;

Strengthen wiring screws to prevent slipping, torque over 2N.m, (Standard requirement 1.6 Nm);

Long Service-Life dual LED indicator lights, (Green & Red)soft brightness, friendly night sleeping, Service-Life >5 years;

100% testing by Auto-equipment detection, qualified rate 99.99%;

Trip threshold meets or exceeds UL requirements for tripping time <25ms 4~6mA;

Both China and USA patents protected;

Warranty for 3 years;

Specifications

ModelGW15
CertificationUL/CUL
StandardUL943/UL498/UL1998
Amperage15A
Rating Voltage125V AC
Working Voltage102V~132V
Trip Level4mA~6mA     <25ms
Operating Temp-35℃ to 66℃ (-30℉ to 150℉)

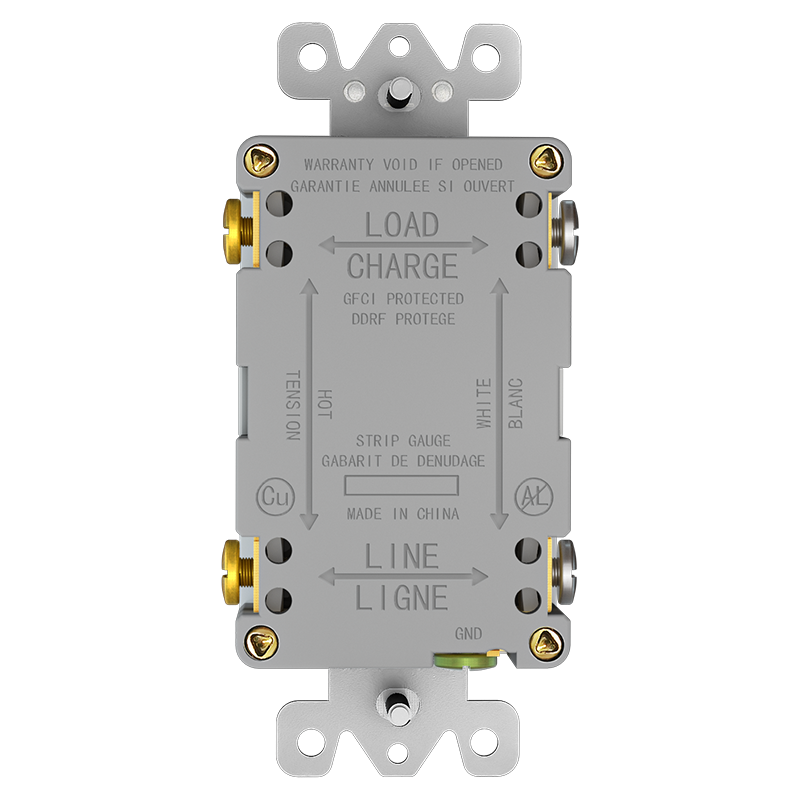

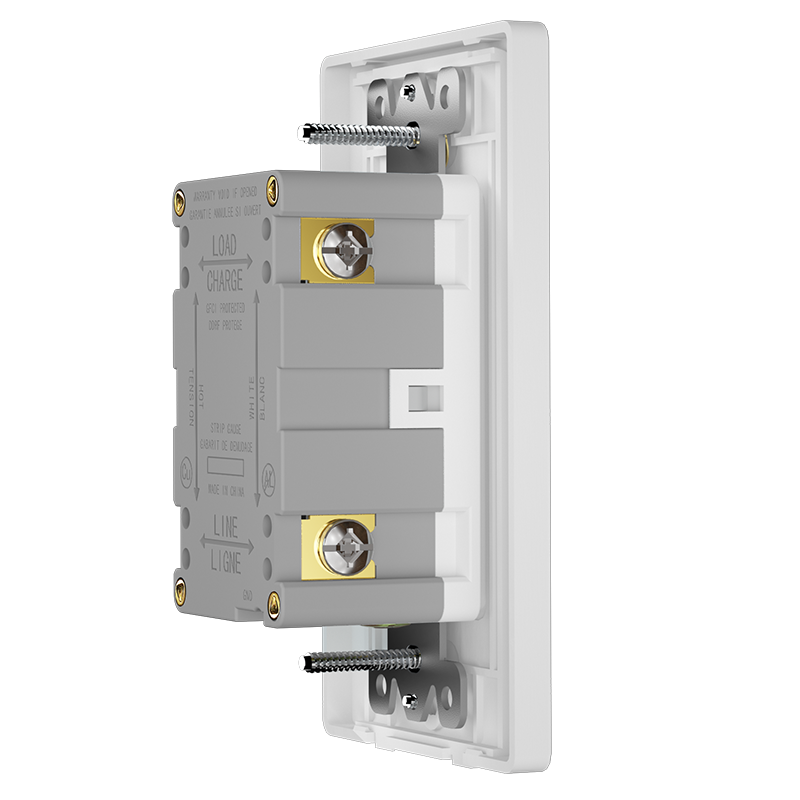

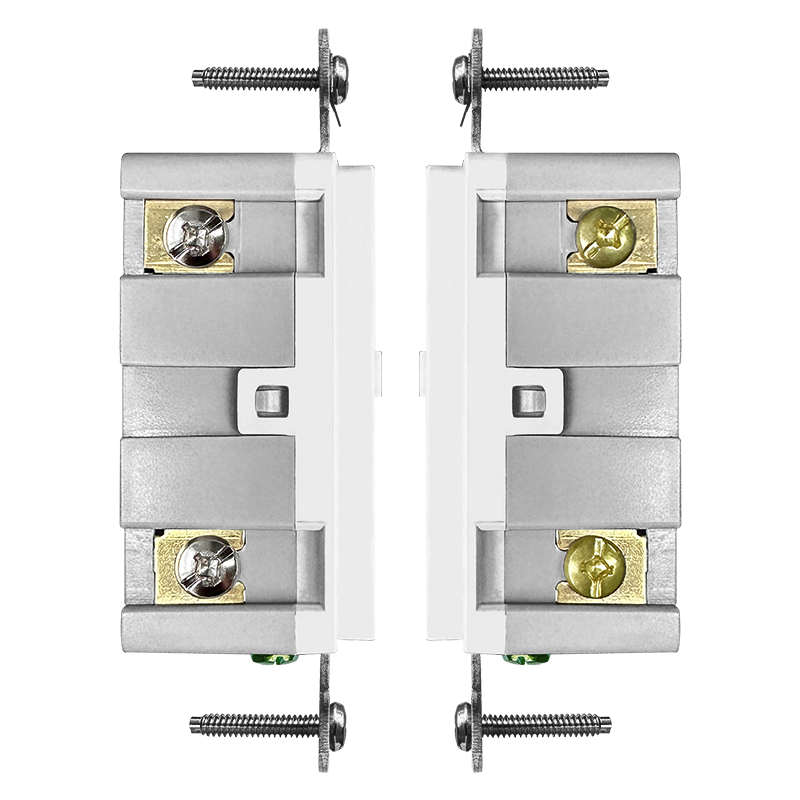

Wiring MethodSide Wire & Back Wire
Wire Gauge#12~#14 AWG Copper Wire
GradeResidential & Commercial Grade
NEMA5-15R
Pole & Wire2-Pole, 3-Wire
GroundingSelf-Grounding
Tamer-ResistantYes
Weather-ResistantYes
UsageIndoor Only

Material Characteristics

Material: Face, Thermoplastic; Body, Thermoplastic;

0.8mm thick high-precision phosphorus bronze;

1.2mm thick galvanized steel bracket;

Silver alloy contacts with 30 silver layer thick;

Coated PC board with Smart chip MCU to protect critical components from moisture;

Environmental: Flammability UL-94 V1 Rating.

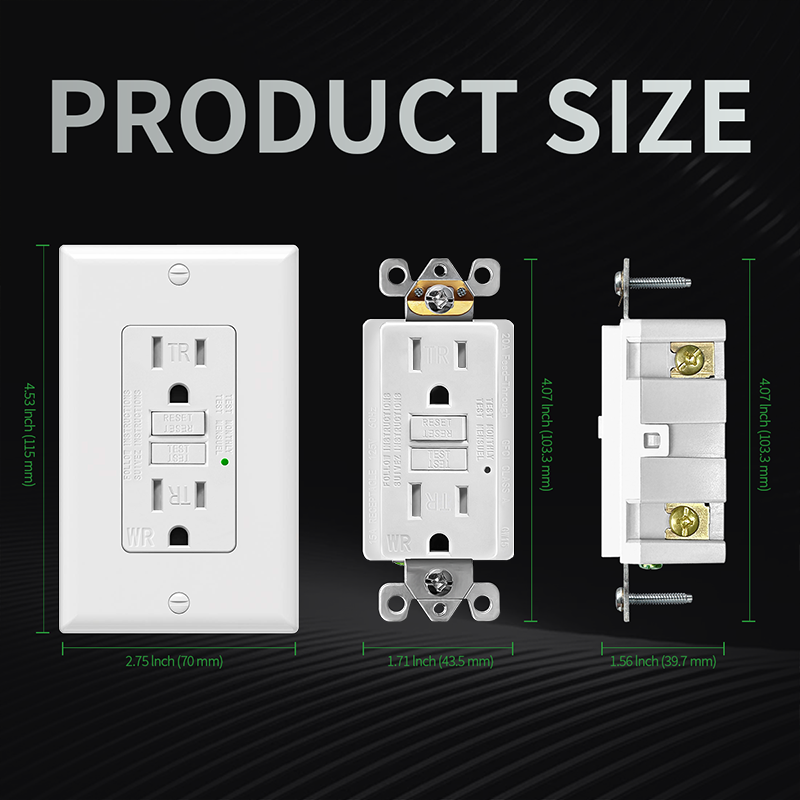

Diemension
